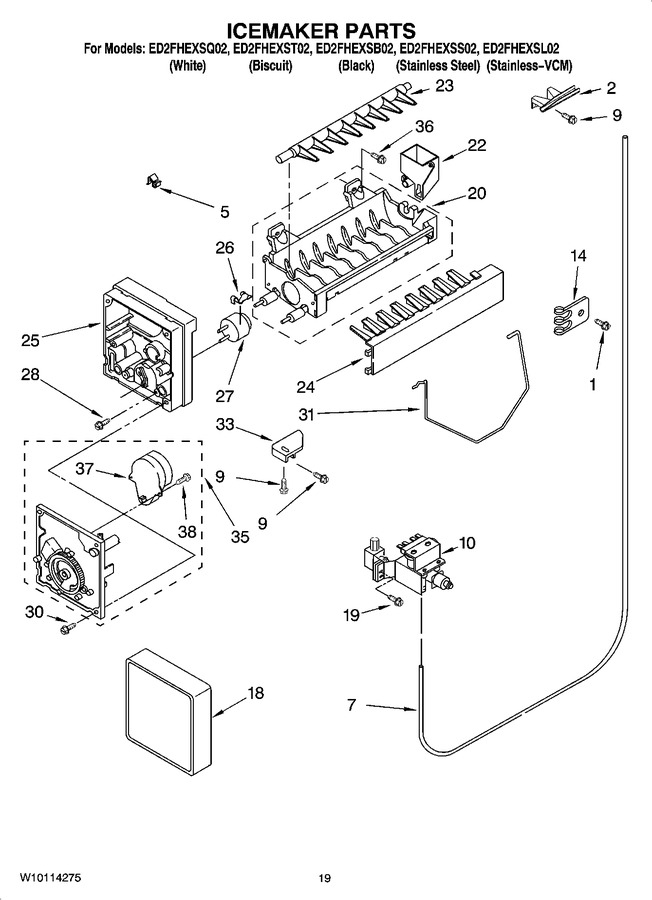

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | 489084 | Screw | ![]() |
|||
2 | W11505385 | Chute, Water (Replaces:2209774) | ![]() |
|||
5 | WP628379 | Clip, Fuse | ![]() |
|||
7 | W10823511 | Tube, Water (Replaces:2304859) | ![]() |
|||
9 | WP489478 | Screw | ![]() |
|||
10 | W10408179 | Filter Valve Asm (Replaces:2304833) | ![]() |
|||
14 | WP488366 | Tube Clip (Replaces:489385) | ![]() |
|||
18 | WPW10289690 | Cover (Replaces:2174155) | ![]() |
|||
19 | WP488649 | Screw | ![]() |
|||
20 | WPW10190929 | Mold & Heater Assembly (also Order 542638) (Replaces:628228) | ![]() |
|||
22 | WP628356 | Cup-water Fill | ![]() |
|||
23 | WP627843 | Ejector | ![]() |
|||
24 | WP2182124 | Ice Striper | ![]() |
|||
25 | WP2195914 | Support (Replaces:2194712) | ![]() |
|||
26 | WP2315522 | Retainer, Thermostat | ![]() |
|||
27 | WP627985 | Thermostat (also Order 542369 Cement Alumilastic) (Replaces:628397) | ![]() |
|||
28 | 8533917 | Screw | ![]() |
|||
30 | WP681249 | Screw (Replaces:489276) | ![]() |
|||
31 | W11342242 | Shut Off Arm (Replaces:2304354) | ![]() |
|||
33 | W11500948 | Bracket (Replaces:628320) | ![]() |
|||
35 | 8201515 | Module Assembly (includes Items 37 And 38) (Replaces:626678) | ![]() |
|||
36 | WP488163 | Screw (Replaces:488208) | ![]() |
|||
37 | W10190935 | Motor (Replaces:626676) | ![]() |
|||
38 | 489136 | Screw | ![]() |
|||
100 | WPW10190965 | Complete Icemaker Assembly (Replaces:626662) | ![]() |
|||
WP1117510 | Torx Key | ![]() |
||||
WP4317852 | Cement, Alumilastic 1-1/4 Oz.) (Replaces:542639) | ![]() |
||||
350930 | Paint, Pressurized Spray (12 Oz.) White | ![]() |
||||
8171357 | Paint, Pressurized Spray (12 Oz.) (graphite) | ![]() |
||||
4392899 | Paint, Touch-up (1/2oz.) (biscuit) | ![]() |
||||
WP80051 | Paint, Touch-up (1/2oz.) (graphite) | ![]() |
||||
799340 | Paint, Bulk (1qt.) (black) | ![]() |
||||
799344 | Paint, Bulk (1 Qt.) (white) (uncut) | ![]() |
||||
4392900 | Paint, Bulk (1 Qt.) (biscuit) (uncut) | ![]() |
||||
8171358 | Paint, Bulk (1qt.) (graphite) | ![]() |
||||
212643 | Sealer, Gum (4 Feet) | ![]() |
||||
W11238399 | Tape, Vinyl 3/4 X 108``) (Replaces:479502) | ![]() |
||||
WP542638 | Grease, Silicone (1/2 Oz.) | ![]() |
||||
799833 | Kit, Evaporator Repair (aluminum Epoxy) | ![]() |
||||
833938 | Kit, Terminal Connector | ![]() |
||||
2217192 | Cleaner, (stainless Steel) | ![]() |
||||
WP503695 | Cork, Sealer 1/4 Pound) | ![]() |
||||
WP505587 | Sealer, Mastic (1 Qt.). | ![]() |
||||
72032 | Paint, Touch-up 1/2 Oz. (black) | ![]() |
||||
72017 | Paint, Touch-up 1/2 Oz. (white) | ![]() |
||||
4392901 | Paint, Pressurized Spray (12oz.) (biscuit) | ![]() |
||||
350942 | Paint, Pressurized Spray (12 Oz.) (primer, White) | ![]() |
||||
285006 | Paint, Pressurized Spray (12 Oz.) (black) (Replaces:350939) | ![]() |
