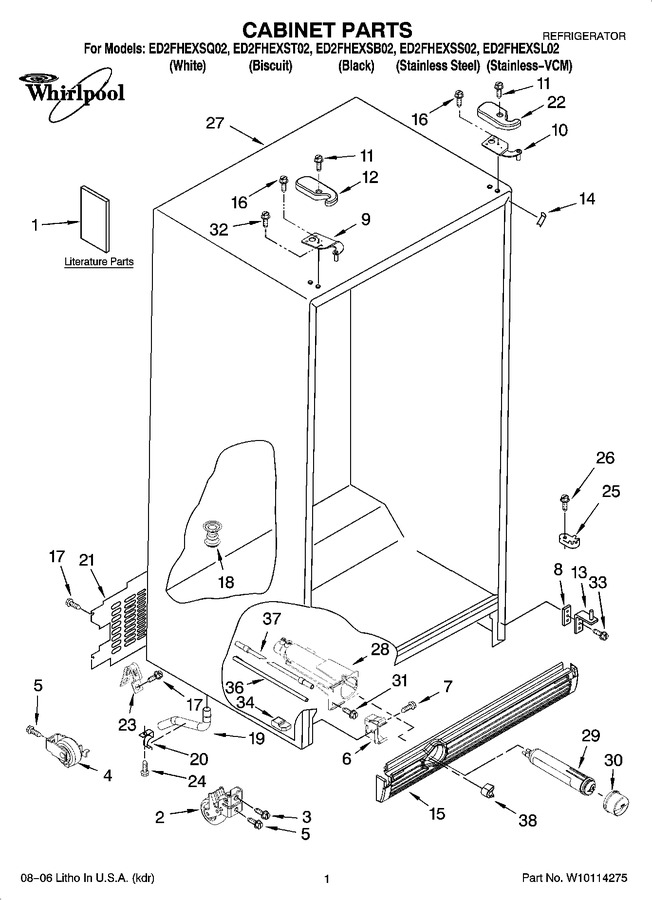

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | 628370 | Modular Icemaker Service Sheet |  |
|||
| 2255384 | Service & Wiring Sheet | |
||||
| 2318624 | Energy Guide | |
||||
| 2261037 | Instruction Sheet, Door Removal | |
||||
| 2318594 | Use & Care Guide | |
||||
| 2 | 4386774 | Front Roller (2) (Replaces:2174748) | |
|||
| 3 | W10850698 | Screw (Replaces:3400517) | |
|||
| 4 | WPW10250570 | Roller (rear) (2) (Replaces:2196236) | |
|||
| 5 | WP489427 | Screw | |
|||
| 6 | WP2155013 | Clip, Grille | |
|||
| 7 | WP489478 | Screw | |
|||
| 8 | WP2209697 | Shim | |
|||
| 9 | WP2203770 | Hinge Top (fc) | |
|||
| 10 | WP2203771 | Hinge Top (rc) | |
|||
| 11 | WP8281227 | Screw | |
|||
| 12 | WP2203407W | Hinge Cover (fc) (white) | |
|||
| WP2203407B | Hinge Cover (fc) (black) | |
||||
| 2203407T | Hinge Cover (fc) (biscuit) | |
||||
| 13 | 8201707 | Hinge Bottom (Replaces:2304322) | |
|||
| 14 | 2196150 | Filler, Wrapper (biscuit) | |
|||
| 2196097 | Filler, Wrapper (black) | |
||||
| 2196094 | Filler, Wrapper (white) | |
||||
| 15 | WPW10283953 | Grille (biscuit) (Replaces:2260501T) | |
|||
| 16 | WP489497 | Screw | |
|||
| 17 | WP489464 | Screw | |
|||
| 18 | W11566763 | Drain Fitting (Replaces:940139) | |
|||
| 19 | WP1108438 | Tube, Extension | |
|||
| 20 | WP1108439 | Clip, Drain Tube | |
|||
| 21 | WP2188756 | Cover, Unit (Replaces:2200455) | |
|||
| 22 | 2203408T | Hinge Cover (rc) (biscuit) | |
|||
| WP2203408W | Hinge Cover (rc) (white) | |
||||
| WP2203408B | Hinge Cover (rc) (black) | |
||||
| 23 | WP3196256 | Clamp-service Cord (Replaces:549193) | |
|||
| 24 | 489084 | Screw | |
|||
| 25 | WPW10329686 | Door Closer, Lower Cam (2) (Replaces:2155311) | |
|||
| 26 | WP489483 | Screw | |
|||
| 28 | WPW10121138 | Housing, Water (Replaces:2260507) | |
|||
| 29 | EDR3RXD1 | Filter, Water (Replaces:4396841) | |
|||
| 30 | WP2260518B | Cap, Water Filter (black) (Replaces:2260502B) | |
|||
| WP2260518W | Cap, Water Filter (white) (Replaces:2260502W) | |
||||
| 2260502T | Cap, Water Filter (biscuit) | |
||||
| 31 | WP489500 | Screw | |
|||
| 32 | WP489128 | Screw (Replaces:8281149) | |
|||
| 33 | WP489497 | Screw (Replaces:3400113) | |
|||
| 34 | 2260519 | Block, Housing Support | |
|||
| 36 | W11496481 | Tube, Filter Outlet (Replaces:2255012) | |
|||
| 37 | WP2304697 | Tube, Filter Inlet | |
|||
| 38 | WP2260503B | Button, Water Filter (black) | |
|||
| 2260503W | Button, Water Filter (white) | |
||||
| 2260503T | Button, Water Filter (biscuit) | |
