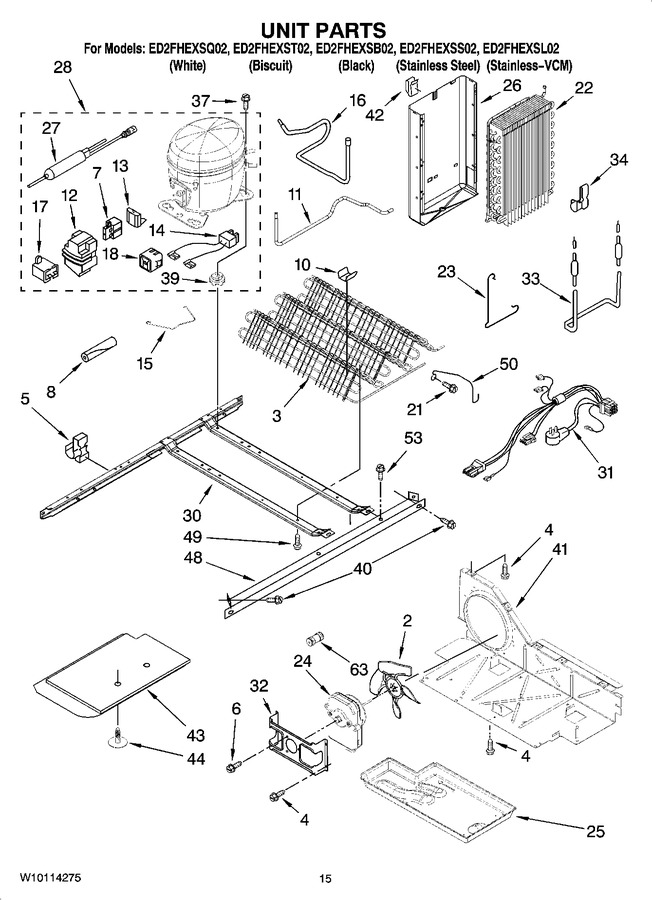

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
2 | 8201630 | Fan Blade (Replaces:2225834) | ![]() |
|||
3 | 2324712 | Condenser Assembly (Replaces:2304902) | ![]() |
|||
4 | WP489464 | Screw | ![]() |
|||
5 | 2208280 | Clip, Wire & Tube | ![]() |
|||
6 | WP8533993 | Screw | ![]() |
|||
7 | W10920279 | Relay (service Only) (Replaces:2183454) | ![]() |
|||
8 | 2162499 | Sleeve (Replaces:2161302) | ![]() |
|||
10 | W10683556 | Clip, Condenser (Replaces:2216914) | ![]() |
|||
11 | 2261599 | Tube, Condenser To Heat Loop | ![]() |
|||
12 | WP2162358 | Cover Service Only) (Replaces:4387731) | ![]() |
|||
13 | WP2187145 | Overload (service Only) | ![]() |
|||
14 | WP2172890 | Wire, Capacitor (service Only) (Replaces:4387765) | ![]() |
|||
15 | 2255009 | Strap, Bale | ![]() |
|||
16 | 2220642 | Tube Suction | ![]() |
|||
17 | WPW10662129 | Capacitor (service) (Replaces:1118576) | ![]() |
|||
WP65889-4 | Capacitor (production) (Replaces:2255130) | ![]() |
||||
18 | WP2188831 | Start-device, Combination (start Relay And Overload) For Production Compressor Only | ![]() |
|||
21 | WP489478 | Screw | ![]() |
|||
22 | WP2188822 | Evaporator | ![]() |
|||
23 | WP2161324 | Clamp | ![]() |
|||
24 | WP2188874 | Fan, Motor | ![]() |
|||
25 | WPW10614158 | Tray, Evaporator (Replaces:1105523) | ![]() |
|||
26 | 2304288 | Heat Shield | ![]() |
|||
27 | WPW10143759 | Drier (Replaces:2317845) | ![]() |
|||
28 | W10309990 | Compressor (includes Items 7, 12, 13, 14, 17 & 27) (also Order 876765 Tube Kit) (Replaces:2255011) | ![]() |
|||
30 | 2304903 | Unit Mounting Frame | ![]() |
|||
31 | WPW10309395 | Unit, Harness (Replaces:2187783) | ![]() |
|||
32 | WP2181929 | Fan, Motor Bracket | ![]() |
|||
33 | WP2323197 | Heater, Defrost (Replaces:2188174) | ![]() |
|||
34 | 2304287 | Clip | ![]() |
|||
37 | 4388295 | Screw (Replaces:489373) | ![]() |
|||
39 | 4388295 | Grommet (4) (production) (Replaces:1100826) | ![]() |
|||
WP4387558 | Grommet (4) (service) | ![]() |
||||
40 | 489340 | Screw | ![]() |
|||
41 | WPW10196306 | Air Baffle (Replaces:2196202) | ![]() |
|||
42 | 2155547 | Clip, Heat Shield | ![]() |
|||
43 | 2304898 | Unit Cover, Bottom | ![]() |
|||
44 | 489396 | Clip | ![]() |
|||
48 | 2149718 | Unit Mounting Rail | ![]() |
|||
49 | W10651374 | Screw (Replaces:8281232) | ![]() |
|||
50 | 2186496 | Guard, Fan (Replaces:2260516) | ![]() |
|||
53 | WP489427 | Screw | ![]() |
|||
63 | 978030 | Valve, Access (3/4``) | ![]() |
|||
876764 | Valve, Access(3/16``) | ![]() |
||||
WP978025 | Valve, Access (1/4``) | ![]() |
||||
WP4373559 | Connector, Water Tube (Replaces:2209709) | ![]() |
||||
978026 | Valve, Access (5/16``) | ![]() |
||||
978027 | Valve, Access (3/8``) | ![]() |
||||
978028 | Valve, Access (1/2) | ![]() |
||||
978029 | Valve Access (5/8``) | ![]() |
