01 - Cabinet Parts


02 - Refrigerator Liner Parts

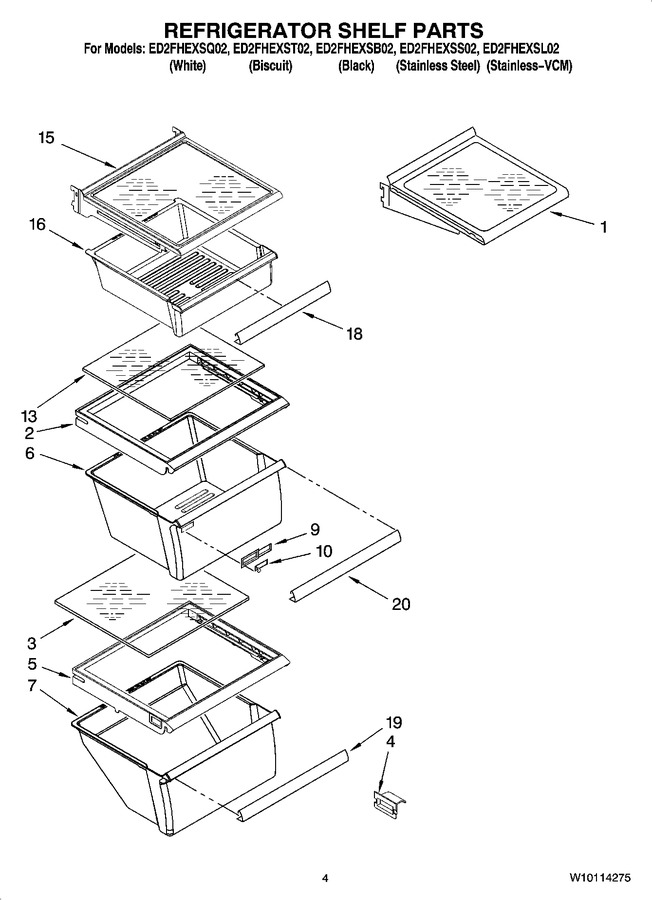

03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Find a Video
1	2188695		Shelf Assembly, Cantilever (2)
2	W10508993		Cover, Crisper   (Replaces:2209698)
3	W10864399		Glass, Cover   (Replaces:2179259)
4	2179350		Deflector
5	W10508993		Cover, Meat Pan   (Replaces:2311726)
6	WP2188656		Crisper Pan   (Replaces:2188652)
7	WP2188664		Meat Pan   (Replaces:2188654)
9	WP2179343		Front, Cripser
10	WP2179342		Slide, Humidity Control
13	W10864399		Glass, Cover   (Replaces:2174150)
15	WP2211581		Shelf, Snack Bin   (Replaces:2206347)
16	W11497323		Snack Bin   (Replaces:2188655)
18	WP2179243		Trim, Handle
19	WP2179234		Trim, Handle   (Replaces:2255592)
20	WP2179234		Trim, Handle   (Replaces:2255593)
