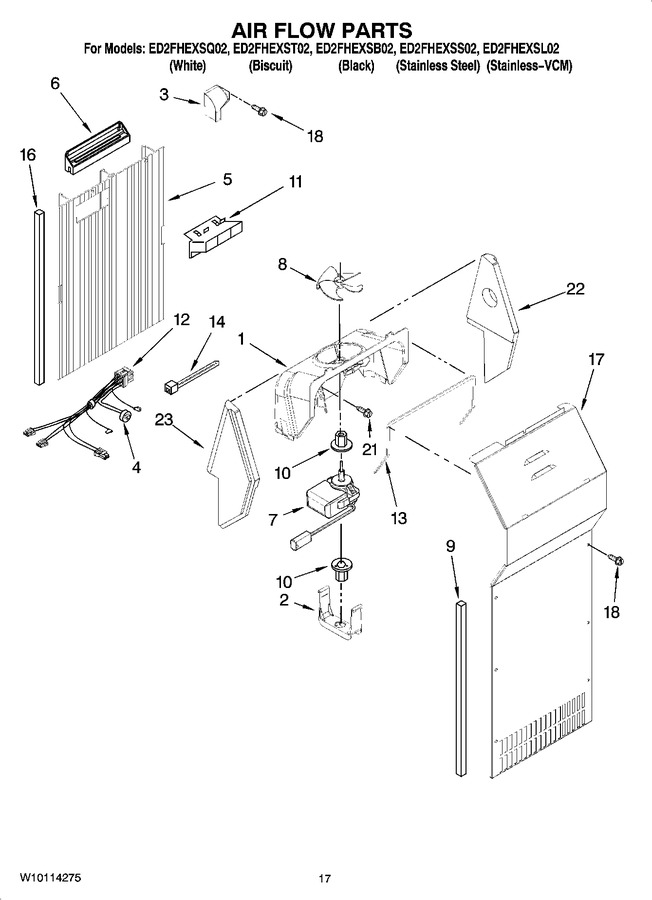

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | W11254898 | Fan Scroll (Replaces:2182119) |  |
|||
| 2 | WP2155590 | Retainer Fan Motor | |
|||
| 3 | WP2161231 | Air Scoop | |
|||
| 4 | WPW10225581 | Bi-metal, Defrost (Replaces:2319914) | |
|||
| 5 | 4388357 | Air Duct Freezer (Replaces:2203591) | |
|||
| 6 | 2149544 | Diffuser, Air Duct | |
|||
| 7 | 4389144 | Fan Motor (Replaces:2149299) | |
|||
| 8 | WP2169142 | Fan Blade | |
|||
| 9 | WP2304241 | Gasket, Evaporator Cover (2) | |
|||
| 10 | WP2176759 | Fan Grommet (2) | |
|||
| 11 | 2182146 | Duct, Icemaker | |
|||
| 12 | W11234406 | Harness, Fan Evaporator (includes 4) (Replaces:2310240) | |
|||
| 13 | WP2155789 | Gasket, Fan Scroll (Replaces:2155788) | |
|||
| 14 | WPW10339879 | Wire Tie (Replaces:2172840) | |
|||
| 16 | 4388500 | Gasket (Replaces:2203875) | |
|||
| 17 | 4388357 | Cover, Evaporator (includes 9) (Replaces:2203840) | |
|||
| 18 | 4389654 | Screw (6) (Replaces:8281159) | |
|||
| 21 | WP489478 | Screw | |
|||
| 22 | 4388358 | Support, R.s (Replaces:2203595) | |
|||
| 23 | 4388358 | Support, L.s (Replaces:2203596) | |
