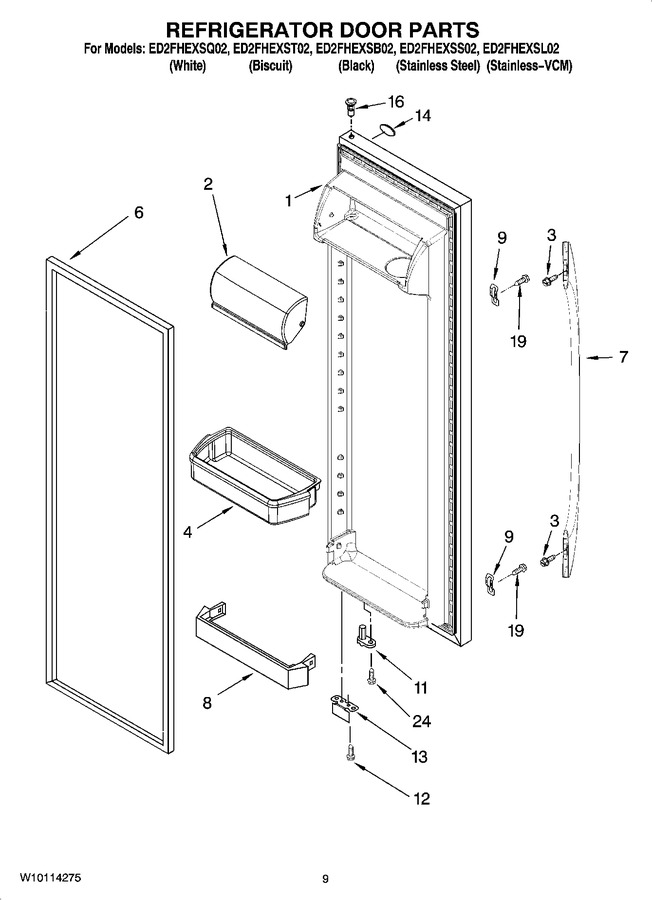

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | L2307101W | Refrigerator Door (includes Item 6) (white) (Replaces:2307101W) |  |
|||
| L2307101T | Refrigerator Door (includes Item 6) (biscuit) (Replaces:2307101T) | |
||||
| L2307101B | Refrigerator Door (includes Item 6) (black) (Replaces:2307101B) | |
||||
| 2307101S | Refrigerator Door (includes Item 6) (stainless Steel) | |
||||
| 2307101LG | Refrigerator Door (includes Item 6) (stainless-vcm) | |
||||
| 2 | WP2256101 | Door, Compartment | |
|||
| 3 | WP8533920 | Screw | |
|||
| 4 | WPW10321304 | Door Bin (3) (Replaces:2304235K) | |
|||
| 6 | 2159081 | Door Gasket, Magnetic (black) (Replaces:2221311) | |
|||
| 2159073 | Door Gasket, Magnetic (mist Beige) (Replaces:2221300) | |
||||
| 7 | W10187085 | Handle (white) (Replaces:2313345W) | |
|||
| W10187086 | Handle (black) (Replaces:2313345B) | |
||||
| W10187087 | Handle (biscuit) (Replaces:2313345T) | |
||||
| 8 | WP2156022 | Trivet, Shelf | |
|||
| 9 | WP2255411 | Clip | |
|||
| 11 | WP2182179 | Door Closer, Upper Cam (Replaces:2182178) | |
|||
| 12 | WP489483 | Screw (Replaces:489420) | |
|||
| 13 | WP2206629B | Bracket, Door Stop (chrome) (Replaces:2206629) | |
|||
| 14 | WP2213265 | Nameplate (Replaces:2255121) | |
|||
| 16 | WP2182181 | Thimble, Top (Replaces:2308091) | |
|||
| 19 | WP489491 | Screw | |
|||
| 24 | WP3400012 | Screw | |
