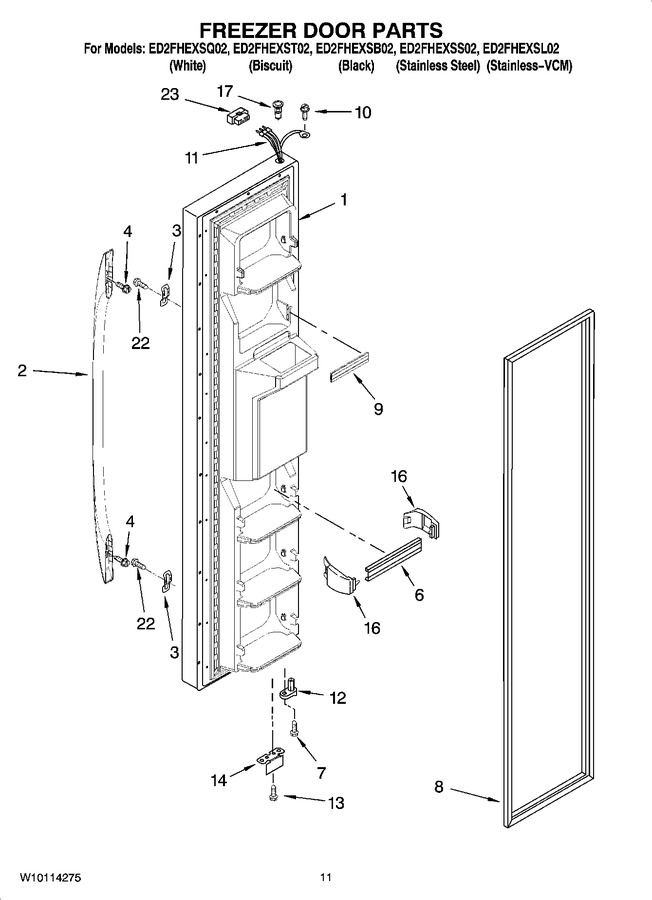

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | L2315205W | Freezer Door (includes Item 8 And Dispenser Front Parts) (white) (Replaces:2315205W) | ![]() |
|||
L2315205T | Freezer Door (includes Item 8 And Dispenser Front Parts) (biscuit) (Replaces:2315205T) | ![]() |
||||
L2315205B | Freezer Door (includes Item 8 And Dispenser Front Parts) (black) (Replaces:2315205B) | ![]() |
||||
2315205S | Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless Steel) | ![]() |
||||
2315205LG | Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless-vcm) | ![]() |
||||
2 | W10187085 | Handle (white) (Replaces:2313345W) | ![]() |
|||
W10187086 | Handle (black) (Replaces:2313345B) | ![]() |
||||
W10187087 | Handle (biscuit) (Replaces:2313345T) | ![]() |
||||
3 | WP2255411 | Clip | ![]() |
|||
4 | WP8533920 | Screw | ![]() |
|||
6 | 2313198K | Trim, Door (4) | ![]() |
|||
7 | WP3400012 | Screw | ![]() |
|||
8 | 2159072 | Door Gasket, Magnetic (mist Beige) (Replaces:2221301) | ![]() |
|||
2159080 | Door Gasket, Magnetic (black) (Replaces:2221312) | ![]() |
||||
9 | WPW10307490 | Trim, Door Shelf (Replaces:2209680) | ![]() |
|||
10 | WP489128 | Screw (Replaces:488500) | ![]() |
|||
11 | 2311642 | Wire Harness (Replaces:2206602) | ![]() |
|||
12 | WP2182179 | Door Closer, Upper Cam | ![]() |
|||
13 | WP489483 | Screw (Replaces:489420) | ![]() |
|||
14 | WP2206629B | Bracket, Door Stop (black) | ![]() |
|||
16 | WP2195917K | End Cap (8) (Replaces:2195917) | ![]() |
|||
17 | 2301049 | Thimble-top (for Stainless Steel Model) | ![]() |
|||
WP2182181 | Thimble, Top (for White, Black, Biscuit And Stainless Vcm Models) | ![]() |
||||
22 | WP489491 | Screw | ![]() |
|||
23 | WP2154473 | Connector | ![]() |
