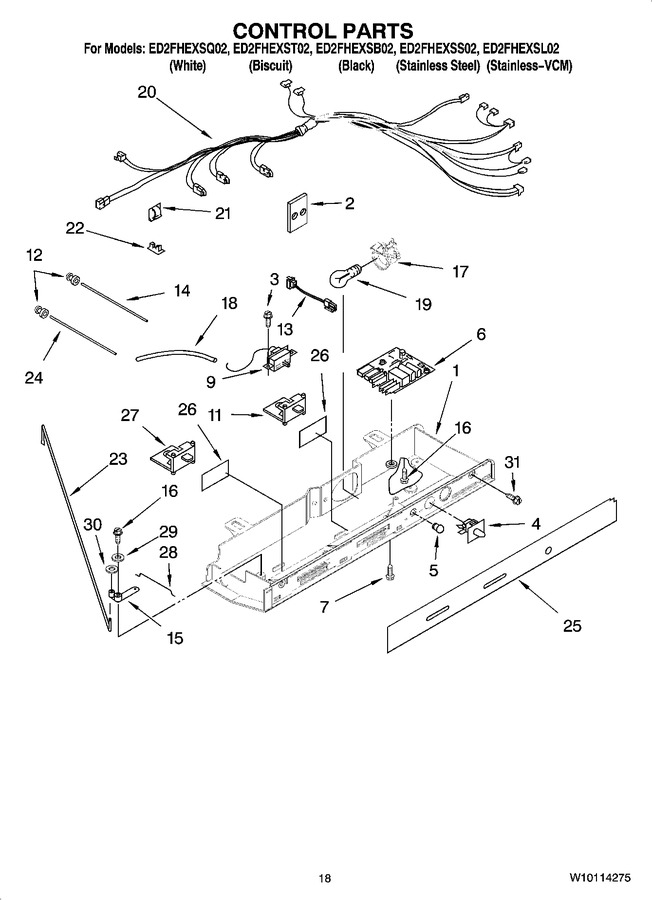

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | 8201785 | Control Box | ||||
2 | 2172931 | Heat Shield | ||||
3 | 2006254 | Screw (2) (Replaces:489214) | ||||
4 | WP2149705 | Light Switch | ||||
5 | 2200096 | Cover, Light Lens | ||||
6 | WPW10366605 | Control Board Assembly (Replaces:2304069) | ||||
7 | 489392 | Screw (2) (Replaces:489398) | ||||
9 | WP2315562 | Thermostat Assembly | ||||
11 | 2161466 | Slide, Thermostat | ||||
12 | 2172906 | Grommet | ||||
13 | W10853646 | Harness, Indicator Light (Replaces:2213462) | ||||
14 | 2179920 | Light Bar (rc) | ||||
15 | 2161306 | Pivot Arm | ||||
16 | 627068 | Screw | ||||
17 | 4387478 | Light Socket (Replaces:2162085) | ||||
18 | WP2196003 | Thermostat, Barrier (Replaces:2196001) | ||||
19 | 8009 | Light Bulb (Replaces:2255743) | ||||
20 | 2311632 | Control Box Harness (Replaces:2212237) | ||||
21 | WP1115374 | Clip, Wiring | ||||
22 | 1115375 | Clip, Wiring | ||||
23 | 2161308 | Connecting Rod | ||||
24 | 2179921 | Light Bar (fc) | ||||
25 | W10124118 | Escutcheon, Control Box (Replaces:2315154) | ||||
26 | 2175513 | Window | ||||
27 | 2181741 | Slide, Air Control | ||||
28 | 2161307 | Connecting Rod (short) | ||||
29 | 489203 | Spring Washer | ||||
30 | 489391 | Fastener, Push-on | ||||
31 | 489084 | Screw (2) |
