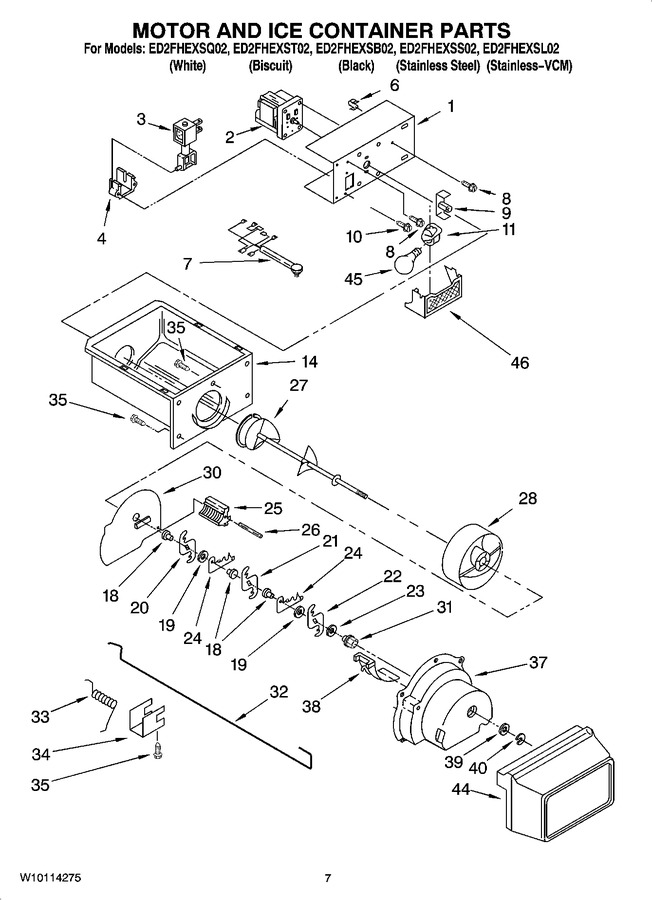

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | WPW10284487 | Bracket, Motor (Replaces:2183728) |  |
|||
| 2 | WP2188242 | Motor, Dispenser (Replaces:2188385) | |
|||
| 3 | WP2152713 | Solenoid Assembly | |
|||
| 4 | W10850503 | Gudie, Solenoid (Replaces:2149100) | |
|||
| 6 | WP1115374 | Clip, Wiring | |
|||
| 7 | 2311639 | Wiring Assembly, Ice Dispenser (Replaces:2206501) | |
|||
| 8 | WP489399 | Screw | |
|||
| 9 | WPW10169511 | Coupling, Motor (Replaces:2205716) | |
|||
| 10 | WP489478 | Screw | |
|||
| 11 | 4387478 | Socket, Light (Replaces:2162085) | |
|||
| 14 | WP2196089 | Ice Container | |
|||
| 18 | WP1119005 | Spacer, Step (3) | |
|||
| 19 | WP1119007 | Spacer, Flat (2) | |
|||
| 20 | W10278731 | Blade, Rotary (Replaces:2257022) | |
|||
| 21 | W10278732 | Blade, Rotary (Replaces:2257023) | |
|||
| 22 | W10278733 | Blade, Rotary (Replaces:2257024) | |
|||
| 23 | WP489235 | Washer, Plain | |
|||
| 24 | 1119009 | Blade, Fixed (2) | |
|||
| 25 | 2157405 | Block, Blade | |
|||
| 26 | 489229 | Roll Pin | |
|||
| 27 | W10422851 | Auger (Replaces:2196295) | |
|||
| 28 | 4388736 | Drum (Replaces:2209781) | |
|||
| 30 | W10852691 | Floating Baffle (Replaces:2171682) | |
|||
| 31 | WP1119018 | Nut, Bearing | |
|||
| 32 | W11596045 | Control Arm (Replaces:2155231) | |
|||
| 33 | 1119020 | Spring, Return | |
|||
| 34 | 1119021 | Retainer Clip, Rod | |
|||
| 35 | WP488787 | Screw (Replaces:488886) | |
|||
| 37 | WPW10185018 | Housing, Crusher (Replaces:2180348) | |
|||
| 38 | WP1119017 | Deflector, Ice | |
|||
| 39 | 489234 | Washer, Plain | |
|||
| 40 | WP489236 | Retainer Ring | |
|||
| 44 | WP2171709 | Front Cover, Ice Container | |
|||
| 45 | 8009 | Light Bulb (Replaces:2255743) | |
|||
| 46 | WP2171706 | Light Lens, Dispenser | |
|||
| 100 | WPW10312301 | Ice Container (complete) (Replaces:2209779) | |
