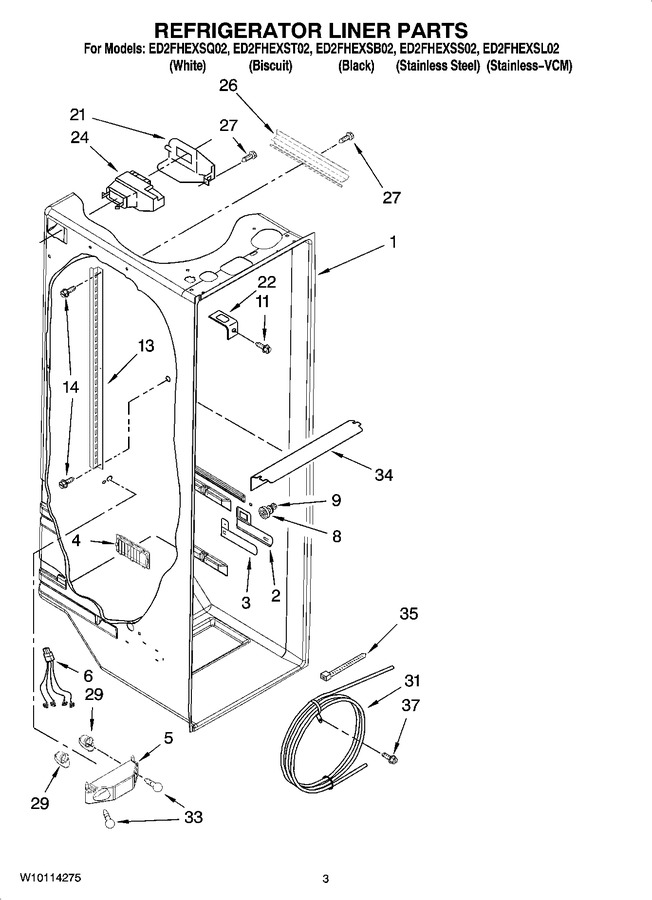

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
2 | 2194744 | Escutcheon, Meat Pan Control | ![]() |
|||
3 | 2182757 | Slide Meat Pan Control | ![]() |
|||
4 | 8201651 | Louver (Replaces:2257741) | ![]() |
|||
5 | 2256035 | Bracket, Dual Crisper Light | ![]() |
|||
6 | 2311637 | Wire Harness, Crisper Light (Replaces:2256037) | ![]() |
|||
8 | W11223328 | Stud Assembly (2) (Replaces:2196485) | ![]() |
|||
9 | WP3-24004-109 | Screw (Replaces:3400894) | ![]() |
|||
11 | WP488488 | Screw (2) (Replaces:489290) | ![]() |
|||
13 | 2206270 | Shelf Ladder | ![]() |
|||
14 | WP489478 | Screw | ![]() |
|||
21 | 2152019 | Air Diffuser Cover | ![]() |
|||
22 | WP2256085 | Bracket, Retainer (Replaces:1123919) | ![]() |
|||
24 | WPW10151374 | Air Diffuser Assembly (Replaces:2209753) | ![]() |
|||
26 | 2150331 | Cover, Conduit | ![]() |
|||
27 | W10759522 | Screw (Replaces:W10004810) | ![]() |
|||
29 | 4387478 | Socket (Replaces:2162085) | ![]() |
|||
31 | WP2256126 | Reservoir | ![]() |
|||
33 | 8009 | Light Bulb (Replaces:2255743) | ![]() |
|||
34 | WP2317782 | Light Lens (Replaces:2209769) | ![]() |
|||
35 | WPW10339879 | Strap (Replaces:2172840) | ![]() |
|||
37 | 798639 | Screw (2) (Replaces:488280) | ![]() |
