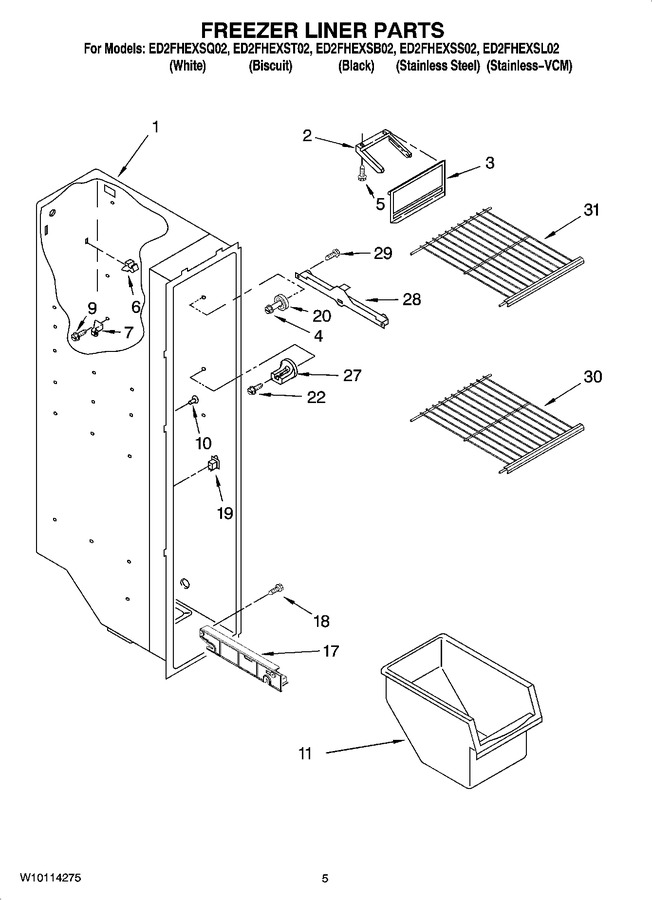

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
2 | 1115380 | Slide, Ice Door | ![]() |
|||
3 | 2171712 | Door, Ice Compartment | ![]() |
|||
4 | WP3400806 | Screw (Replaces:8281158) | ![]() |
|||
5 | WP489478 | Screw (2) | ![]() |
|||
6 | 2215823 | Clip, Air Duct (2) (Replaces:842534) | ![]() |
|||
7 | 4388405 | Support, Stud (4) (Replaces:2196206) | ![]() |
|||
9 | W10142289 | Screw (Replaces:3400893) | ![]() |
|||
10 | 2176134 | Grommet | ![]() |
|||
11 | 2216111 | Freezer Bin | ![]() |
|||
17 | WP2261449 | Slide, Basket (right Side) | ![]() |
|||
WP2261448 | Slide, Basket (left Side) | ![]() |
||||
18 | W10759522 | Screw (4) (Replaces:W10004810) | ![]() |
|||
19 | W11457217 | Switch, Rocker Arm (Replaces:1115373) | ![]() |
|||
20 | WP2196483 | Stud Assembly | ![]() |
|||
22 | W10142289 | Screw (Replaces:3400893) | ![]() |
|||
27 | WP2196207 | Stud, Rear | ![]() |
|||
28 | W10845585 | Slide, Container (left Side) (Replaces:1119237) | ![]() |
|||
1119293 | Slide, Container (right Side) | ![]() |
||||
29 | 718257 | Screw (Replaces:489100) | ![]() |
|||
30 | WP2174249K | Shelf | ![]() |
|||
31 | WP2174265K | Shelf (2) | ![]() |
