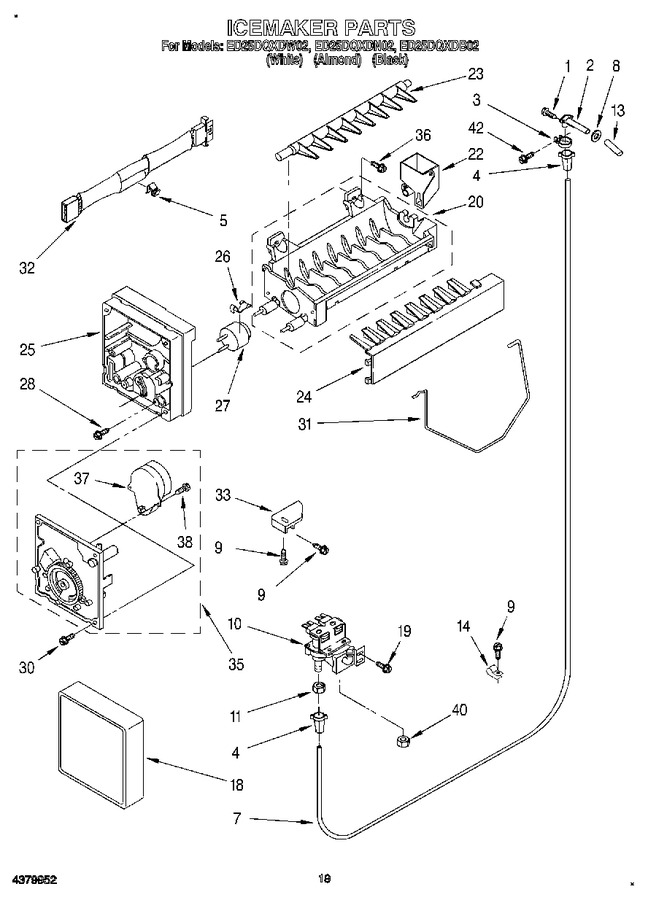

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | 489084 | Screw |  |
|||
| 2 | WP2196157 | Fitting, Water Tube (Replaces:836489) | |
|||
| 3 | WP488878 | Clamp, Tube | |
|||
| 4 | 4387491 | Insert, Tube (Replaces:841707) | |
|||
| 5 | WP628379 | Clip, Fuse | |
|||
| 7 | W10823511 | Tube, Water (Replaces:2155294) | |
|||
| 8 | WP1106508 | Seal Gasket | |
|||
| 9 | WP489478 | Screw (Replaces:489242) | |
|||
| 10 | W10853654 | Valve, Solenoid (Replaces:2181730) | |
|||
| 11 | WP627018 | Nut, Compression | |
|||
| 13 | 2171943 | Tube, Water Inlet | |
|||
| 14 | WP488366 | Tube Clamp (Replaces:489385) | |
|||
| 18 | WPW10289690 | Cover (Replaces:2174155) | |
|||
| 19 | WP488649 | Screw | |
|||
| 20 | WPW10190929 | Mold & Heater Assembly (also Order (Replaces:628228) | |
|||
| WP542638 | Silicone Grease | |
||||
| 22 | WP628356 | Cup-water Fill | |
|||
| 23 | WP627843 | Ejector | |
|||
| 24 | WP2182124 | Ice Striper (Replaces:627788) | |
|||
| 25 | WP2195914 | Support (Replaces:627790) | |
|||
| 26 | WP2315522 | Retainer, Thermostat (Replaces:627796) | |
|||
| 27 | WP627985 | Thermostat (also Order) (Replaces:628397) | |
|||
| WP4317852 | Cement Alumilastic) (Replaces:542369) | |
||||
| 28 | 489322 | Screw | |
|||
| 30 | WP681249 | Screw (Replaces:489276) | |
|||
| 31 | W11342242 | Shut Off Arm (Replaces:2171593) | |
|||
| 32 | WP2187464 | Harness, Wiring (Replaces:628256) | |
|||
| 33 | W11500948 | Bracket (Replaces:628320) | |
|||
| 35 | W10190935 | Module Assembly (includes Items 37 And 38) (Replaces:628399) | |
|||
| 36 | WP488163 | Screw (Replaces:488208) | |
|||
| 37 | W10190935 | Motor (Replaces:628398) | |
|||
| 38 | 489136 | Screw | |
|||
| 40 | 4318011 | Nut, Compression (Replaces:1129179) | |
|||
| 42 | WP488787 | Screw (Replaces:488886) | |
|||
| 100 | 72017 | Paint, Touch-up 1/2 Oz. (white) | |
|||
| WP72107 | Paint, Touch-up (1/2oz.) (almond) | |
||||
| WP4317852 | Cement, Alumilastic 1-1/4 Oz.) (Replaces:542639) | |
||||
| WP542638 | Grease, Silicone (1/2 Oz.) | |
||||
| WP503695 | Cork, Sealer 1/4 Pound) | |
||||
| WP505587 | Sealer, Mastic (1 Qt.). | |
||||
| 876370 | Kit, Insulation 2 Pcs. X 3`` X 24`` X 48``) | |
||||
| 72032 | Paint, Touch-up 1/2 Oz. (black) | |
||||
| 4317943 | Complete Icemaker Assembly | |
||||
| 350942 | Primer White (13 Oz. Spray Can) | |
||||
| 285006 | Enamel, Black (13 Oz. Spray Can) (Replaces:350939) | |
||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White | |
||||
| 212643 | Sealer, Gum (4 Feet) | |
||||
| W11238399 | Tape, Vinyl 3/4 X 108``) (Replaces:479502) | |
||||
| 876029 | Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``) | |
||||
| 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) | |
||||
| 606755 | Bag, Insulation (36-5/8`` X 46``) | |
||||
| 799833 | Kit, Evaporator Repair (aluminum Epoxy) | |
||||
| 833938 | Kit, Terminal Connector | |
||||
| 799340 | Enamel, Black (1 Qt. Uncut) | |
||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) | |
||||
| 978883 | Enamel, Almond (1 Qt. Uncut) | |
||||
| 350956 | Xenamel, Almond (13 Oz. Spray Can) | |
||||
| WP1117510 | Torx Key | |
||||
| WPW10312300 | Ice Crusher Assembly (Replaces:2149072) | |
||||
| LIT628370 | Modular Icemaker Service Sheet | |
||||
| LIT2176786 | Service & Wiring Sheet | |
||||
| LIT2180534 | Use & Care Guide | |
||||
| LIT2182524 | Energy Label | |
