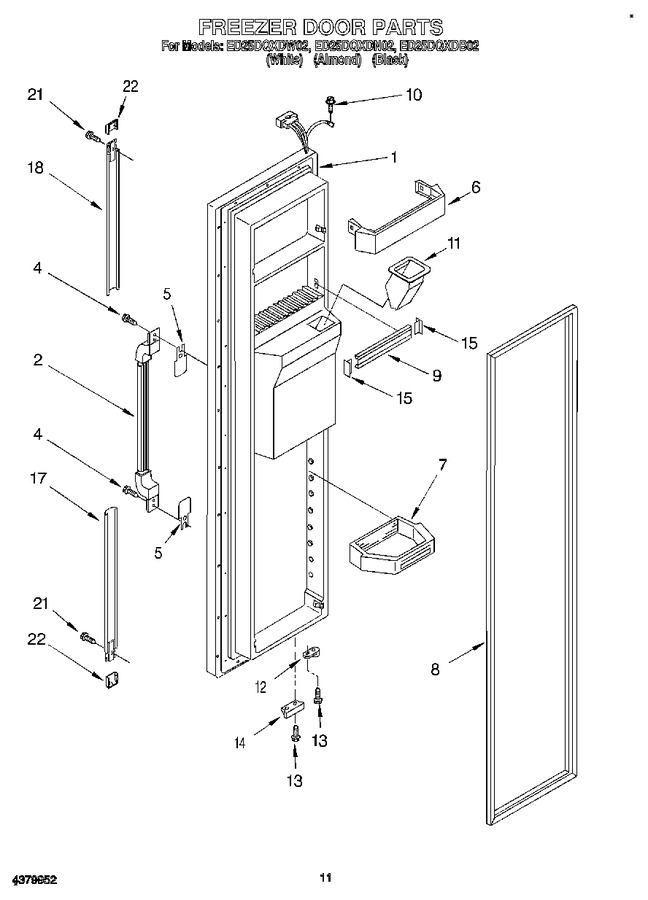

View Diagram in Separate Window
Print Part List
Move Mouse over Availability column to View Location Quantities-on-Hand
Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | 2177220 | Freezer Door (includes Item No.8 And Dispenser Front Parts) (almond) | ||||
2177102 | Freezer Door (includes Item No.8 And Dispenser Front Parts) (white) | |||||
2177222 | Freezer Door (includes Item No.8 And Dispenser Front Parts) (black) | |||||
2 | 2179367 | Handle, Center (almond) | ||||
2179366 | Handle, Center (white) | |||||
2179368 | Handle, Center (black) | |||||
4 | WP489463 | Screw | ||||
5 | 2179399 | Shim, End Cap (2) | ||||
6 | WP2171157 | Trivet, Shelf (2) | ||||
7 | 2179576 | Shelf Bin (2) | ||||
8 | 2159074 | Door Gasket, Magnetic (service) (mist Beige) | ||||
2159082 | Door Gasket, Magnetic (service) (black) | |||||
9 | WPW10307490 | Trim, Door Shelf (Replaces:2177845) | ||||
10 | WP488234 | Screw (Replaces:489422) | ||||
11 | 2156146 | Chute, Ice | ||||
12 | 4318165 | Door Closer, Upper Cam (Replaces:2155312) | ||||
13 | WP489483 | Screw (Replaces:489420) | ||||
14 | WP2195950 | Bracket, Door Stop (chrome) (Replaces:2155332) | ||||
15 | WP2156006 | Plug-trim | ||||
17 | 2174282 | Extension, Bottom (white) | ||||
2174284 | Extension, Bottom (black) | |||||
2174283 | Extension, Bottom (almond) | |||||
18 | 2174281 | Extension, Top (black) | ||||
2174279 | Extension, Top (white) | |||||
2174280 | Extension, Top (almond) | |||||
21 | 489084 | Screw | ||||
22 | 2174008 | Cover, Endcap (black) | ||||
2174007 | Cover, End Cap (almond) | |||||
2174006 | Cover, Endcap (white) |
