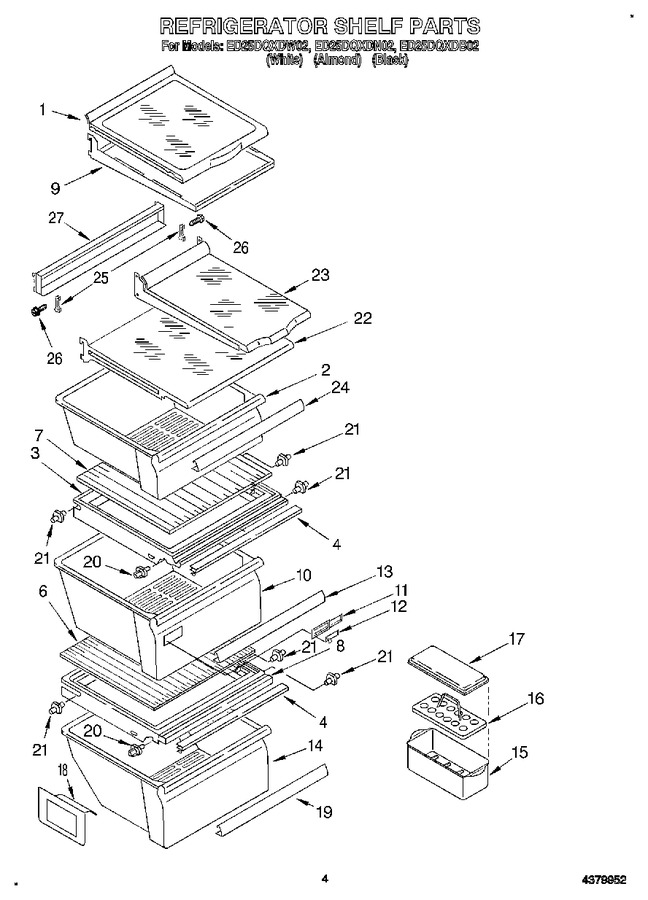

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | WPW10141748 | Shelf Assembly, Glass Sliding (2) (Replaces:2174041) |  |
|||
| 2 | W11497323 | Snack Bin (Replaces:2179283) | |
|||
| 3 | W10508993 | Cover, Crisper (Replaces:2179271) | |
|||
| 4 | 2174442 | Gasket, Cover (front) | |
|||
| 6 | W10864399 | Glass, Meat Cover (Replaces:2179259) | |
|||
| 7 | W10864399 | Glass, Crisper Cover (Replaces:2174149) | |
|||
| 8 | W10508993 | Cover, Meat Pan (Replaces:2179267) | |
|||
| 9 | WP2195975 | Frame, Shelf (2) (Replaces:2174042) | |
|||
| 10 | WP2188656 | Pan, Crisper (Replaces:2179281) | |
|||
| 11 | WP2179343 | Front, Crisper Pan | |
|||
| 12 | WP2179342 | Slide, Humidity Control | |
|||
| 13 | WP2179234 | Trim, Handle (Replaces:2179237) | |
|||
| 14 | WP2188664 | Meat Pan (Replaces:2179282) | |
|||
| 15 | W10136387A | Bin, Egg (Replaces:2169933) | |
|||
| 16 | WP2177817 | Egg Carrier (Replaces:2164373) | |
|||
| 17 | 2169935 | Cover | |
|||
| 18 | 2179350 | Deflector | |
|||
| 19 | WP2179234 | Trim, Handle | |
|||
| 20 | 4388539 | Shelf Stud (Replaces:2172943) | |
|||
| 21 | 4388538 | Shelf Stud (Replaces:1110718) | |
|||
| 22 | WP2211581 | Shelf, Snack Bin (Replaces:2174045) | |
|||
| 23 | 2174392 | Shelf, Slide (side To Side) | |
|||
| 24 | WP2179243 | Trim, Handle | |
|||
| 25 | 2169608 | Hook, Shelf | |
|||
| 26 | 489419 | Screw | |
|||
| 27 | 2174422 | Track, Shelf | |
