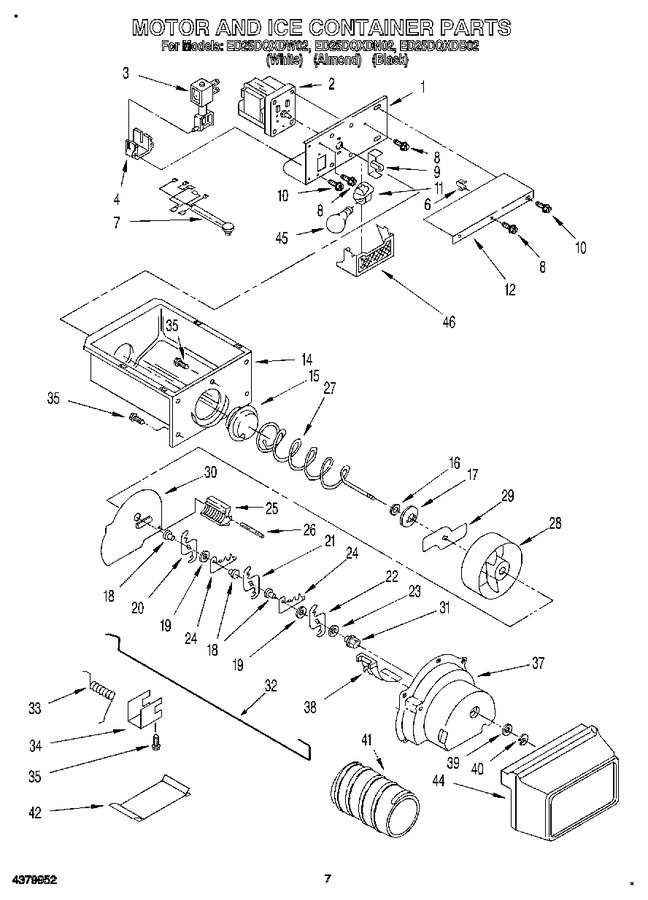

View Diagram in Separate Window
Print Part List
Move Mouse over Availability column to View Location Quantities-on-Hand
Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | W10304376 | Bracket, Motor (Replaces:1118386) | ![]() |
|||
2 | WP2188242 | Motor, Dispenser (Replaces:2155263) | ![]() |
|||
3 | WP2152713 | Solenoid Assembly | ![]() |
|||
4 | W10850503 | Guide, Solenoid (Replaces:2149100) | ![]() |
|||
6 | WP1115374 | Clip, Wiring | ![]() |
|||
7 | 2169490 | Wiring Assembly, Ice Dispenser | ![]() |
|||
8 | WP489399 | Screw | ![]() |
|||
9 | WPW10169511 | Coupling, Motor (Replaces:983663) | ![]() |
|||
10 | WP489478 | Screw (Replaces:489242) | ![]() |
|||
11 | 4387478 | Socket, Light (Replaces:2162085) | ![]() |
|||
12 | W10304376 | Cover, Motor (Replaces:1115339) | ![]() |
|||
14 | WPW10670845 | Ice Container (Replaces:2152702) | ![]() |
|||
15 | W10749708 | Coupling, Conveyor (Replaces:983668) | ![]() |
|||
16 | 1118480 | Stop, Cone | ![]() |
|||
17 | 1119074 | Feeder Cone | ![]() |
|||
18 | WP1119005 | Spacer, Step (3) | ![]() |
|||
19 | WP1119007 | Spacer, Flat (2) | ![]() |
|||
20 | W10278731 | Blade, Rotary (Replaces:1119006) | ![]() |
|||
21 | W10278732 | Blade, Rotary (Replaces:1119012) | ![]() |
|||
22 | W10278733 | Blade, Rotary (Replaces:1119013) | ![]() |
|||
23 | WP489235 | Washer, Plain | ![]() |
|||
24 | 1119009 | Blade, Fixed (2) | ![]() |
|||
25 | 2157405 | Block, Blade | ![]() |
|||
26 | 489229 | Roll Pin | ![]() |
|||
27 | W10422851 | Conveyor (Replaces:1119003) | ![]() |
|||
28 | 4388736 | Drum (Replaces:2171681) | ![]() |
|||
29 | 4388736 | Drive Bar (Replaces:1118470) | ![]() |
|||
30 | W10852691 | Floating Baffle (Replaces:2171682) | ![]() |
|||
31 | WP1119018 | Nut, Bearing | ![]() |
|||
32 | W11596045 | Control Arm (Replaces:2155231) | ![]() |
|||
33 | 1119020 | Spring, Return | ![]() |
|||
34 | 1119021 | Retainer Clip, Rod | ![]() |
|||
35 | WP488787 | Screw (Replaces:488886) | ![]() |
|||
37 | WPW10185018 | Housing, Crusher (Replaces:2157407) | ![]() |
|||
38 | WP1119017 | Deflector, Ice | ![]() |
|||
39 | 489234 | Washer, Plain | ![]() |
|||
40 | WP489236 | Retainer Ring | ![]() |
|||
41 | 4317870 | Sleeve-auger (Replaces:2152021) | ![]() |
|||
42 | 2152700 | Housing Filler | ![]() |
|||
44 | W10457397 | Front Cover, Ice Container (Replaces:2171708) | ![]() |
|||
45 | 8009 | Light Bulb (Replaces:527949) | ![]() |
|||
46 | WP2171706 | Light Lens, Dispenser | ![]() |
