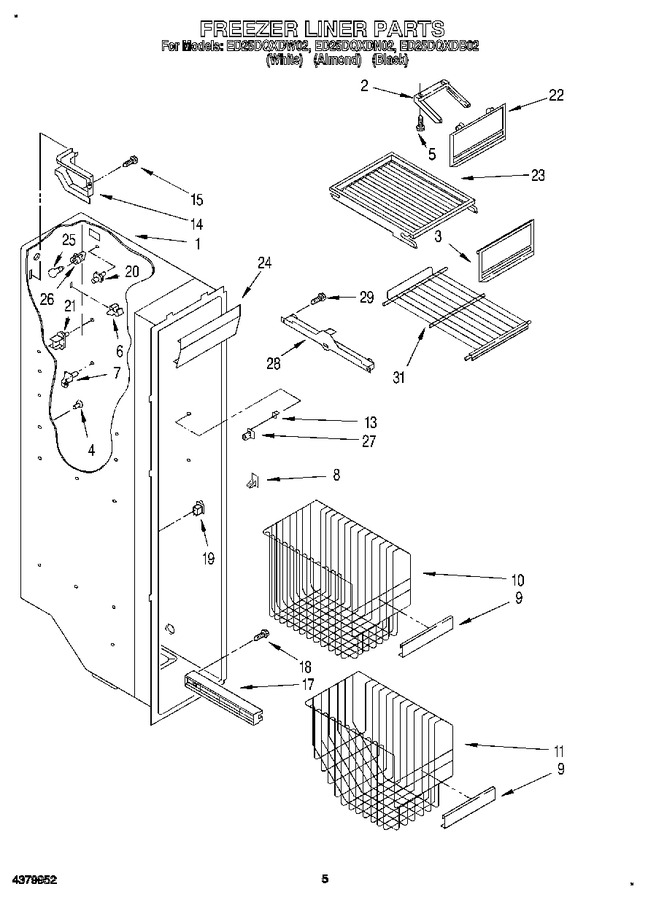

View Diagram in Separate Window
Print Part List
Move Mouse over Availability column to View Location Quantities-on-Hand
Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | N/A | Liner (not A Serviceable Part) | ||||
2 | 1115380 | Slide, Ice Door | ||||
3 | WP2171713 | Door, Ice Compartment | ||||
4 | 2176134 | Grommet | ||||
5 | WP489478 | Screw (Replaces:489242) | ||||
6 | 2215823 | Clip, Air Duct (2) (Replaces:842534) | ||||
7 | 4388405 | Support, Stud (4) (Replaces:1115317) | ||||
8 | W11581579 | Stud, Rear (Replaces:1106982) | ||||
9 | WP2195905 | Trim, Basket (Replaces:2171770) | ||||
10 | WP2301190 | Basket, Tall (Replaces:2181765) | ||||
11 | 2181764 | Basket, Slope | ||||
13 | W11581579 | Stud, Support (Replaces:946355) | ||||
14 | 2155572 | Cover, Wiring | ||||
15 | 489176 | Screw | ||||
17 | 8201602 | Slide, Basket (right Side (2)) (Replaces:2181760) | ||||
18 | WP487240 | Screw (Replaces:487042) | ||||
19 | W11457217 | Switch, Rocker Arm (Replaces:1115373) | ||||
20 | 4388538 | Stud (4) (Replaces:1110718) | ||||
21 | 1115386 | Stud, Shelf (4) | ||||
22 | 2174343 | Door, Top Compartment | ||||
23 | WP2194297K | Shelf, Top Compartment (Replaces:2171714) | ||||
24 | 2171705 | Lens, Light | ||||
25 | 8009 | Light Bulb (Replaces:527949) | ||||
26 | 4387478 | Light Socket (Replaces:2162085) | ||||
27 | W11581579 | Stud, Front R.s. (Replaces:946356) | ||||
28 | W10845585 | Slide, Container (left Side) (Replaces:1119237) | ||||
1119293 | Slide, Container (right Side) | |||||
29 | 718257 | Screw (Replaces:489100) | ||||
31 | WP2174267 | Shelf |
View Diagram in Separate Window
Print Part List
Move Mouse over Availability column to View Location Quantities-on-Hand
