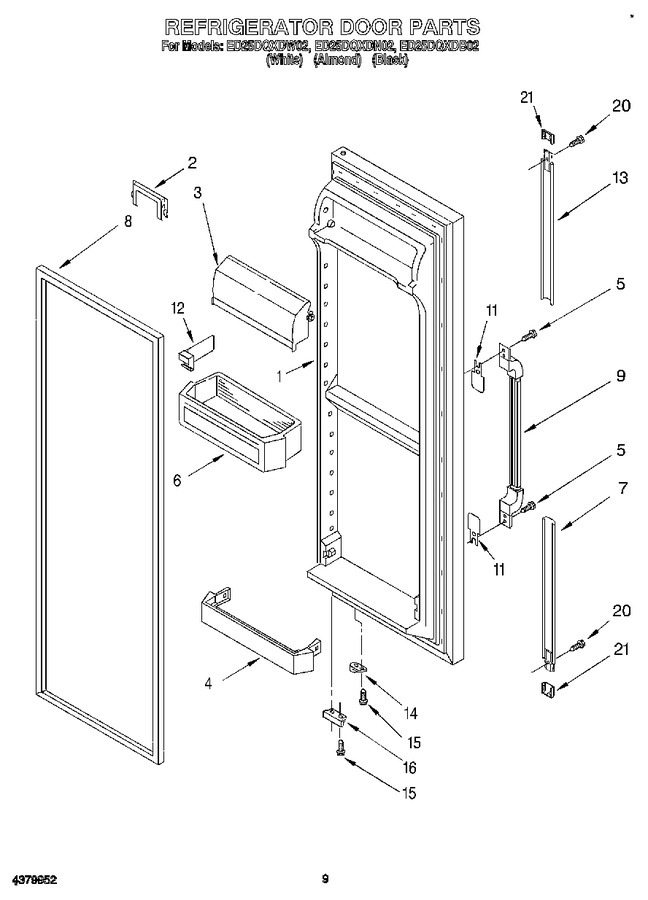

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | 2177319 | Refrigerator Door (includes Item No.8) (white) | ||||
2177320 | Refrigerator Door (includes Item No.8) (almond) | |||||
2177321 | Refrigerator Door (includes Item No.8) (black) | |||||
2 | 2173643K | Retainer, Bottle (Replaces:2173643) | ||||
3 | WP2256101 | Door, Compartment (Replaces:2177105) | ||||
4 | WP2156022 | Trivet, Shelf | ||||
5 | WP489463 | Screw | ||||
6 | WPW10321304 | Shelf Bin (3) (Replaces:2179574) | ||||
7 | 2174283 | Extension, Bottom (almond) | ||||
2174282 | Extension, Bottom (white) | |||||
2174284 | Extension, Bottom (black) | |||||
8 | 2159075 | Door Gasket, Magnetic (service) (mist Beige) | ||||
2159083 | Door Gasket, Magnetic (service) (black) | |||||
9 | 2179368 | Handle, Center (black) | ||||
2179367 | Handle, Center (almond) | |||||
2179366 | Handle, Center (white) | |||||
11 | 2179399 | Shim | ||||
12 | 2195496K | Divider, Bin (Replaces:2171284) | ||||
13 | 2174280 | Extension, Top (almond) | ||||
2174281 | Extension, Top (black) | |||||
2174279 | Extension, Top (white) | |||||
14 | 4318165 | Door Closer, Upper Cam (Replaces:2155312) | ||||
15 | WP489483 | Screw (Replaces:489420) | ||||
16 | WP2195950 | Bracket, Door Stop (black) (Replaces:2155334) | ||||
20 | 489084 | Screw | ||||
21 | 2174008 | Cover, Endcap (black) | ||||
2174006 | Cover, Endcap (white) | |||||
2174007 | Cover, End Cap (almond) |
