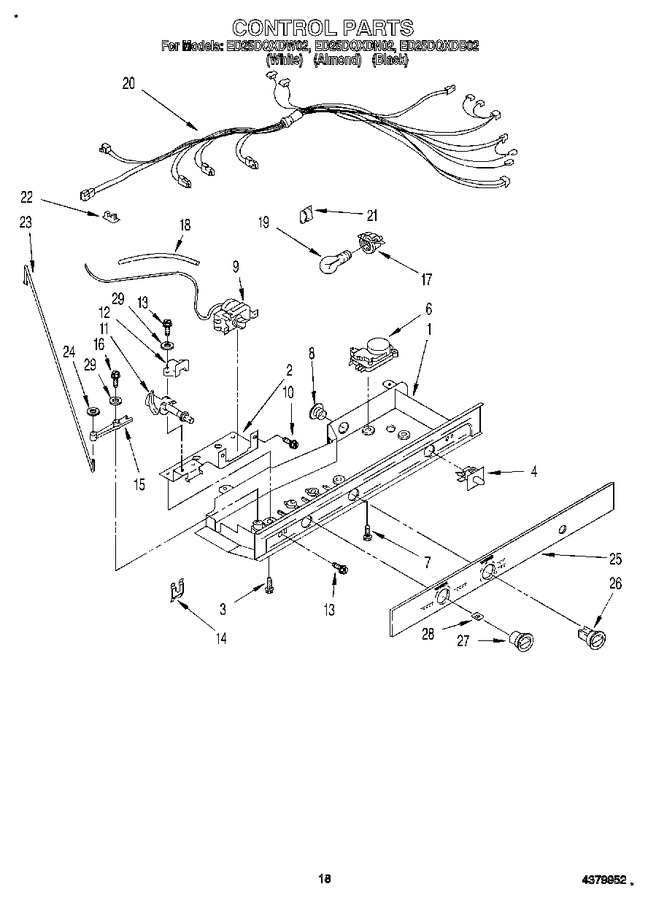

1 | 2169147 | Control Box | ||||
2 | 1110629 | Mounting Bracket | ||||
3 | 489397 | Screw (2) | ||||
4 | WP2149705 | Light Switch | ||||
6 | 2162046 | Defrost Timer (10 Hr.) | ||||
7 | 489392 | Screw (2) (Replaces:489398) | ||||
8 | 940014 | Hole Plug | ||||
9 | WP2198202 | Thermostat Assembly (Replaces:2161284) | ||||
10 | WP965173 | Screw (Replaces:487869) | ||||
11 | WP2182195 | Cam Assembly (Replaces:2161250) | ||||
12 | 1110560 | Bearing Body | ||||
13 | WP489478 | Screw (Replaces:489242) | ||||
14 | WP2182195 | Retainer, Damper (Replaces:938439) | ||||
15 | W11256541 | Pivot Arm (Replaces:1110559) | ||||
16 | 627068 | Screw | ||||
17 | 4387478 | Light Socket (Replaces:2162085) | ||||
18 | WP2196003 | Thermostat, Barrier (Replaces:1115241) | ||||
19 | 8009 | Light Bulb (Replaces:527949) | ||||
20 | 2149186 | Control Box Harness | ||||
21 | WP1115374 | Clip, Wiring | ||||
22 | 1115375 | Clip, Wiring | ||||
23 | 1123960 | Connecting Rod | ||||
24 | 489285 | Fastener, Push-on | ||||
25 | 2179361 | Escutcheon, Control Box | ||||
26 | 2182111 | Knob, Thermostat (Replaces:1116852) | ||||
27 | 2197871 | Knob, Air Control (Replaces:1116853) | ||||
28 | 837444 | Knob, Retainer | ||||
29 | 489203 | Spring Washer |
