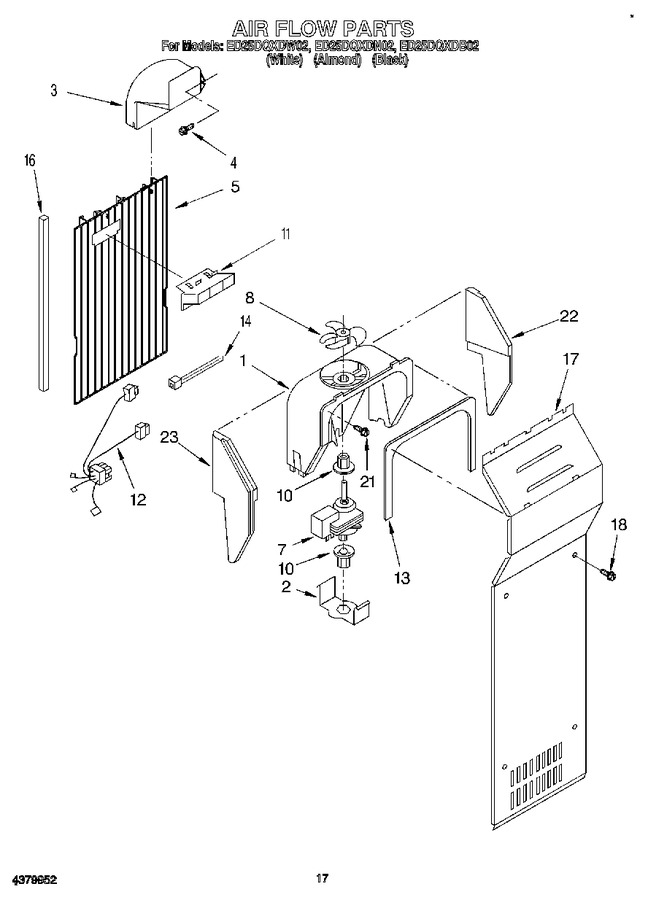

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | WP2182120 | Fan Scroll (Replaces:2155594) | ||||
2 | WP2155590 | Retainer Fan Motor | ||||
3 | WP2161231 | Air Scoop | ||||
4 | 489176 | Screw | ||||
5 | 2176072 | Air Duct Freezer | ||||
7 | 4389144 | Fan Motor (Replaces:2162404) | ||||
8 | WP2169142 | Blade, Fan | ||||
10 | WP2176759 | Grommet, Fan (2) | ||||
11 | 2182146 | Duct, Icemaker (Replaces:1115381) | ||||
12 | 2161478 | Harness, Fan Evaporator, And Heater, Bi-metal | ||||
13 | WP2155789 | Gasket Cover | ||||
14 | WPW10339879 | Wire Tie (Replaces:2172840) | ||||
16 | WP2304241 | Gasket (Replaces:2155782) | ||||
17 | 2155612 | Cover, Evaporator | ||||
18 | WP489355 | Screw | ||||
21 | WP489478 | Screw (Replaces:489242) | ||||
22 | 4388358 | Support, R.s. (Replaces:2161484) | ||||
23 | 4388358 | Support, L.s. (Replaces:2155766) |
