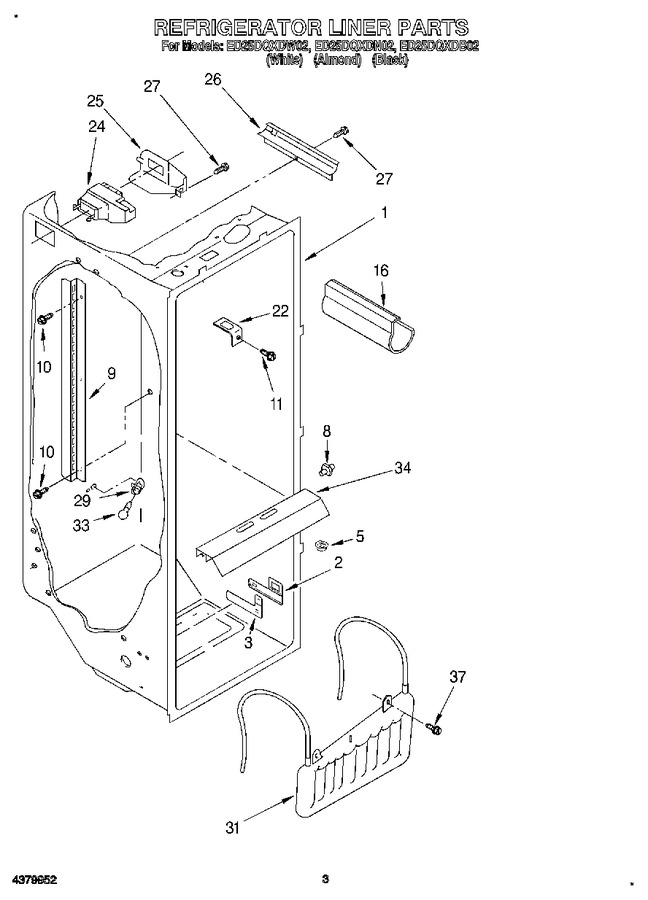

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | N/A | Liner (not A Serviceable Part) | ||||
2 | 2194744 | Escutcheon, Meat Pan Control (Replaces:2182762) | ||||
3 | 2182757 | Slide Meat Pan Control | ||||
5 | 2171846 | Release Valve | ||||
8 | 4388538 | Stud (Replaces:1110718) | ||||
9 | 2181796 | Ladder, Shelf | ||||
10 | 487539 | Screw | ||||
11 | WP488488 | Screw (2) (Replaces:489290) | ||||
16 | W10777924 | Wine Rack (Replaces:2179374) | ||||
22 | WP2256085 | Bracket, Retainer (Replaces:1123919) | ||||
24 | WPW10151374 | Air Diffuser Assembly (Replaces:2176173) | ||||
25 | 2152019 | Cover, Air Diffuser | ||||
26 | 2150331 | Cover, Conduit | ||||
27 | W10759522 | Screw (Replaces:486298) | ||||
29 | 4387478 | Socket (Replaces:2162085) | ||||
31 | WP2256126 | Reservoir (Replaces:2155290) | ||||
33 | 8009 | Light Bulb (Replaces:527949) | ||||
34 | 2174436 | Light Lens | ||||
37 | 798639 | Screw (2) (Replaces:488280) |
