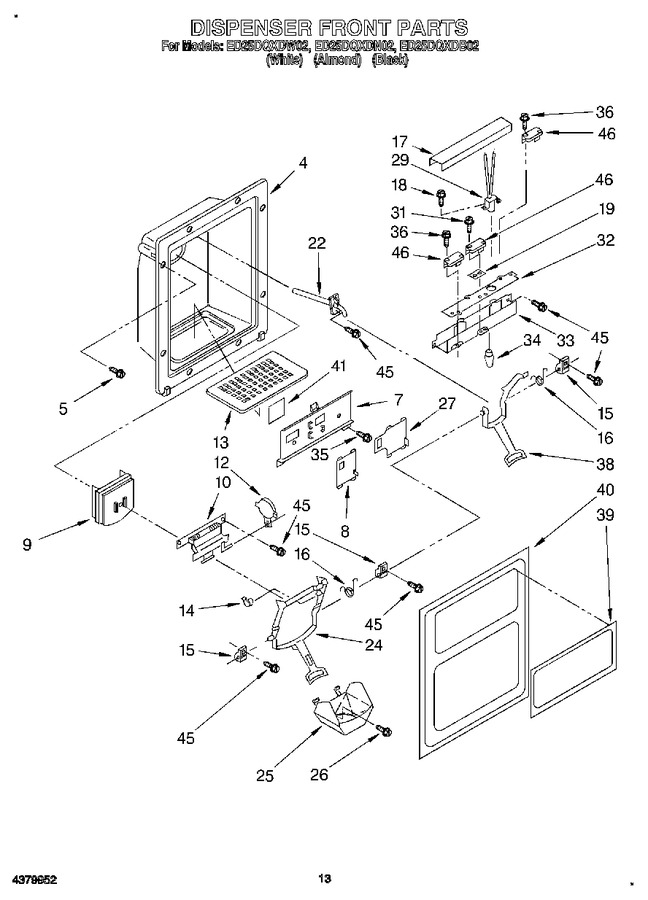

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 4 | N/A | Housing, Dispenser (not A Serviceable Part) |  |
|||
| 5 | W11693756 | Screw (Replaces:488687) | |
|||
| 7 | 2152717 | Frame, Slides (white) | |
|||
| 2152718 | Frame, Slides (almond) | |
||||
| 2152716 | Frame, Slides (black) | |
||||
| 8 | 2152720 | Slide, Cube/crush Switch (white) | |
|||
| 2152721 | Slide, Cube/crush Switch (almond) | |
||||
| 2152719 | Slide, Cube/crush Switch (black) | |
||||
| 9 | WP2180353 | Door, Ice (Replaces:2157651) | |
|||
| 10 | WP2147167 | Door Mechanism Assembly (Replaces:2157650) | |
|||
| 12 | WP1120581 | Mechanism Delay | |
|||
| 13 | WP983900 | Grille, Overflow (white) (Replaces:1126120) | |
|||
| 14 | 987917 | Clip, Bearing (2) | |
|||
| 15 | 983697 | Bearing, Lever (3) | |
|||
| 16 | 983696 | Spring, Lever (2) | |
|||
| 17 | 2147165 | Shield, Wiring | |
|||
| 18 | WP489128 | Screw (Replaces:488500) | |
|||
| 19 | WP625834 | Spacer, Switch | |
|||
| 22 | WP4388152 | Water Fitting Assembly (Replaces:2157744) | |
|||
| 24 | W10852657 | Lever Assembly, Ice Dispenser (black) (Replaces:2177143) | |
|||
| 25 | 1124730 | Guide, Ice (black) (Replaces:1119035) | |
|||
| 26 | 488892 | Screw | |
|||
| 27 | 2152724 | Slide, Light Switch (black) | |
|||
| 2152727 | Slide, Light Switch (almond) | |
||||
| 2152726 | Slide, Light Switch (white) | |
||||
| 29 | 2147131 | Lamp Holder | |
|||
| 31 | 488361 | Screw | |
|||
| 32 | 2147164 | Insulator, Control Bracket | |
|||
| 33 | 2147163 | Bracket, Control | |
|||
| 34 | WP22002263 | Bulb, Light (Replaces:851389) | |
|||
| 35 | WP489069 | Screw (Replaces:489101) | |
|||
| 36 | 489155 | Screw, | |
|||
| 38 | WP2177149 | Lever Assembly, Water Dispenser (white) | |
|||
| 39 | 2179207 | Plaque, Front Cover (black) | |
|||
| 2174331 | Plaque, Front Cover (white) | |
||||
| 2179206 | Plaque, Front Cover (almond) | |
||||
| 40 | 2179202 | Front Cover, Housing (includes Item 39) (almond) | |
|||
| 2179203 | Front Cover, Housing (includes Item 39) (black) | |
||||
| 2174310 | Front Cover, Housing (includes Item 39) (white) | |
||||
| 41 | 2147172 | Heat Shield, Frame | |
|||
| 45 | WP3400906 | Screw (Replaces:489000) | |
|||
| 46 | WP2162361 | Switch, Micro (4) | |
