| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | WP1163283 | Screw (Replaces:61005467) | 10 |  |
||
| 61005330 | Rail, Shelf Support | 10 | |
|||
| 61005331 | Screw | 10 | |
|||
| 2 | 61005083 | Cover, Crisper Shelf (lwr) | 10 | |
||
| 61005082 | Cover, Crisper Shelf (upr) | 10 | |
|||
| 3 | 61003734 | Glass, Meat Shelf (spillproof) | 10 | |
||
| 4 | 61005712 | Pan Assy., Crisper (upr) | 11 | |
||
| 61003667 | Pan, Crisper (upr) | 10 | |
|||
| 5 | 61003668 | Pan, Crisper (lwr) | 10 | |
||
| 61005714 | Pan Assy., Crisper (lwr) | 11 | |
|||
| 6 | 61005483 | Frame, Shelf | 10 | |
||
| 7 | 61005084 | Seal, Crisper Shelf (rear) | 10 | |
||
| 8 | WP61006081 | Cover Assy., Air Return (Replaces:61004287) | 10 | |
||
| 9 | 415013-35 | Screw | 10 | |
||
| 61003723 | Cover, Meat Control Tape | 10 | |
|||
| 10 | 61003888 | Strip, Filler (sides) | 10 | |
||
| 11 | 61004110 | Base, Filler Strip (lt) | 10 | |
||
| 400019-1 | Screw | 10 | |
|||
| 61004109 | Base, Filler Strip (rt) | 10 | |
|||
| 12 | 61004480 | Glide, Shelf | 10 | |
||
| 61005332 | Frame Assy., Elevator Shelf | 10 | |
|||
| 13 | 61005333 | Shelf, Spillproof | 10 | |
||
| 61005334 | Shelf, Elevator | 10 | |
|||
| 14 | 61003718 | Pan, Meat | 10 | |
||
| 61005716 | Pan Assy., Meat | 13 | |
|||
| 15 | 67423-2 | Roller | 10 | |
||
| WP61002307 | Roller | 23 | |
|||
| WP61002307 | Roller | 24 | |
|||
| WP61002307 | Roller | 11 | |
|||
| 16 | WP61002308 | Screw (Replaces:61004728) | 24 | |
||
| WP61002308 | Screw (Replaces:61004728) | 23 | |
|||
| WP61002308 | Screw (Replaces:61004728) | 13 | |
|||
| WP61002308 | Screw (Replaces:61004728) | 11 | |
|||
| 65275-6 | Screw | 10 | |
|||
| 17 | 61003722 | Tape, Meat Control | 10 | |
||
| 18 | 61003725 | Retainer, Duct | 10 | |
||
| 61006055 | Duct, Air (meat) | 24 | |
|||
| 61003785 | Duct, Air (meat) | 10 | |
|||
| 19 | 61003674 | Slide, Control (meat) | 10 | |
||
| 20 | 415013-35 | Screw | 10 | |
||
| 61003784 | Cover, Meat Pan Slide | 10 | |
|||
| 21 | 61006154 | Frame, Crisper Shelf (lwr) | 23 | |
||
| 61003712 | Shelf, Crisper (lwr) | 10 | |
|||
| 22 | 61006153 | Frame, Crisper Shelf (upr) | 23 | |
||
| 61003713 | Shelf, Crisper (upr) | 10 | |
|||
| 23 | 61003715 | Seal, Crisper Side (lwr) | 10 | |
||
| 61003714 | Seal, Crisper Side (upr) | 10 | |
|||
| 24 | 61004507 | Front Assy., Meat Pan | 10 | |
||
| 25 | 61003379 | Receptacle, Bulb | 10 | |
||
| 26 | W10887190 | Bulb, Light (Replaces:61001787) | 10 | |
||
| 27 | 61006087 | Frame, Meat Shelf | 24 | |
||
| 61003770 | Frame, Meat Shelf | 10 | |
|||
| 28 | 61003439 | Shield, Light | 10 | |
||
| 29 | 61005085 | Front Assy., Crisper Pan | 10 | |
||
| 30 | 61005335 | Shelf, Spillproof (lwr) | 10 | |
||
| 31 | 61005336 | Frame, Shelf (lwr) | 10 | |
||
| 32 | 61005338 | Screw | 10 | |
||
| WP489478 | Screw (Replaces:400017-1) | 10 | |
|||
| WP61005337 | Support, Crisper Shelf | 10 | |
|||
| WP67764-1 | Support, Crisper Shelf | 10 | |

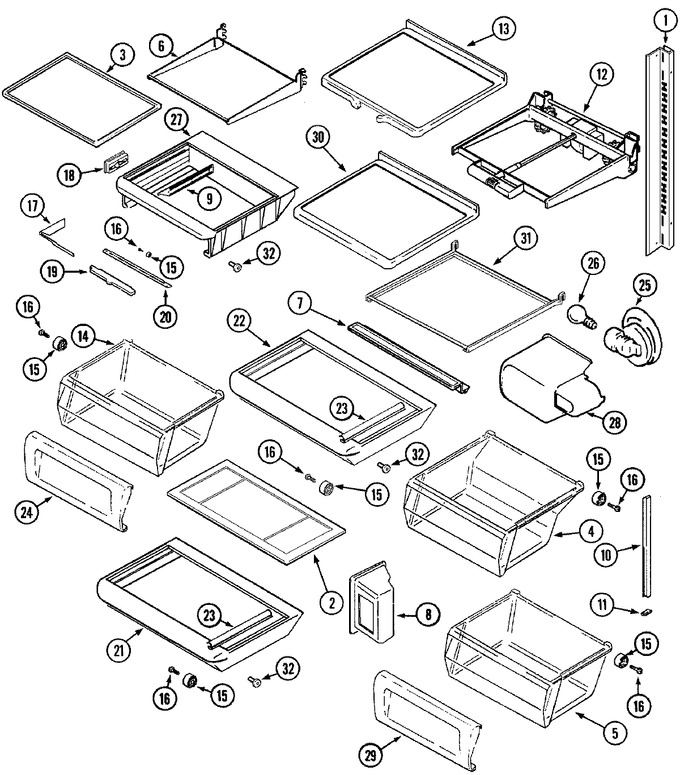

View Diagram in Separate Window
