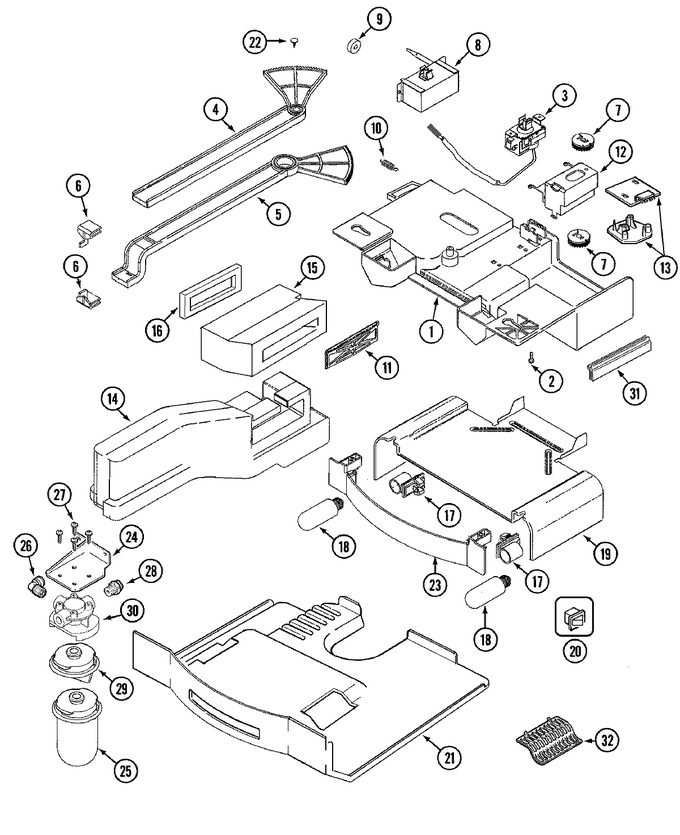

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | WP61005971 | Housing Assy., Auto Damper | 19 |  |
||
| 61004424 | Screw | 10 | |
|||
| 61003228 | Foil, Heat Shield | 10 | |
|||
| WP61005971 | Housing Assy., Auto Damper (Replaces:61005043) | 10 | |
|||
| 2 | WPW10348409 | Screw (no.8 Ab) (Replaces:61004314) | 10 | |
||
| 3 | 400016-1 | Screw | 10 | |
||
| 61005327 | Control Assy., Temperature | 10 | |
|||
| 4 | 61003287 | Rod, Damper Control | 10 | |
||
| 5 | 61003293 | Rod, Temp. Control | 10 | |
||
| 6 | 61004591 | End Cap, Control Rod | 10 | |
||
| 7 | 61003305 | Gear, Control Slide | 10 | |
||
| 8 | WP61005971 | Damper, Auto (Replaces:61005044) | 10 | |
||
| 61003359 | Screw | 10 | |
|||
| 9 | 61003358 | Washer, Damper Rod | 10 | |
||
| 10 | 61003141 | Spring, Damper Door | 10 | |
||
| 11 | 61003235 | Door, Damper | 10 | |
||
| 12 | 61003315 | Support, Temp. Control | 10 | |
||
| 13 | 61005388 | Screw (Replaces:405007-1) | 10 | |
||
| ADC5988 | Defrost Kit,enhanced Adaptive (Replaces:12002104) | 25 | |
|||
| ADC5988 | Defrost Assy., Adaptive (Replaces:61005988) | 19 | |
|||
| 61005951 | Screw | 19 | |
|||
| ADC5988 | Defrost Assy., Adaptive (Replaces:61003990) | 10 | |
|||
| 14 | WP61005972 | Insulation, Discharge (rt) | 19 | |
||
| WP61003229 | Insulation, Discharge (lt) | 10 | |
|||
| WP61005972 | Insulation, Discharge (rt) (Replaces:61003230) | 10 | |
|||
| 15 | 61005848 | Tunnel, Control Housing | 13 | |
||
| 61005075 | Seal, Tunnel (double-sided) | 10 | |
|||
| 61005328 | Tunnel, Control Housing | 10 | |
|||
| 16 | 61003819 | Seal, Tunnel | 10 | |
||
| 17 | 2005042 | Receptacle, Bulb (Replaces:61005973) | 19 | |
||
| 2005042 | Receptacle, Bulb (Replaces:61003237) | 10 | |
|||
| 18 | 61003354 | Barrier, Foil (lt) | 10 | |
||
| 61005974 | Foil (rt) | 19 | |
|||
| 61005975 | Foil (lt) | 19 | |
|||
| 8206232A | Bulb, Light (Replaces:61003236) | 10 | |
|||
| 61003355 | Barrier, Foil (rt) | 10 | |
|||
| 19 | 61003238 | Shield, Heat | 10 | |
||
| 61005976 | Shield, Heat | 19 | |
|||
| 20 | 61006166 | Switch, Light | 26 | |
||
| W11396033 | Switch, Light (Replaces:61003661) | 10 | |
|||
| 21 | 61003924 | Shield, Light | 10 | |
||
| 61005849 | Shield, Light | 13 | |
|||
| 22 | 61003316 | Retainer, Control Rod | 10 | |
||
| 23 | 61004380 | Panel, Control | 10 | |
||
| 24 | 61003698 | Bracket, Water Filter | 10 | |
||
| 25 | SGF-M07 | Filter, Water (Replaces:UKF7002AXX) | 10 | |
||
| 26 | 61003705 | Fitting Assy., Water Filter | 10 | |
||
| 27 | 61003796 | Screw | 10 | |
||
| 28 | 61003790 | Fitting, Water Filter | 10 | |
||
| 29 | WP61003791 | Plug, Filter Bypass | 10 | |
||
| 30 | WP61003789 | Head, Water Filter | 10 | |
||
| 31 | 61003891 | Trim, Control Housing | 10 | |
||
| 32 | 61004590 | Grill, Light | 10 | |
||
| 33 | 61006124 | Wire Harness, Controls | 19 | |
||
| 61003696 | Wire Harness, Controls (Replaces:61005329) | 10 | |
|||
| 34 | 61004262 | Wire Harness, Frz./f.f. | 10 | |
||
| 61005850 | Wire Harness, Frz./f.f. | 13 | |
|||
| Y00000000 | See Note (frz/ff Wire Harness Is Not Replaceable. It Is Part Of The Main Harness) | 19 | |
