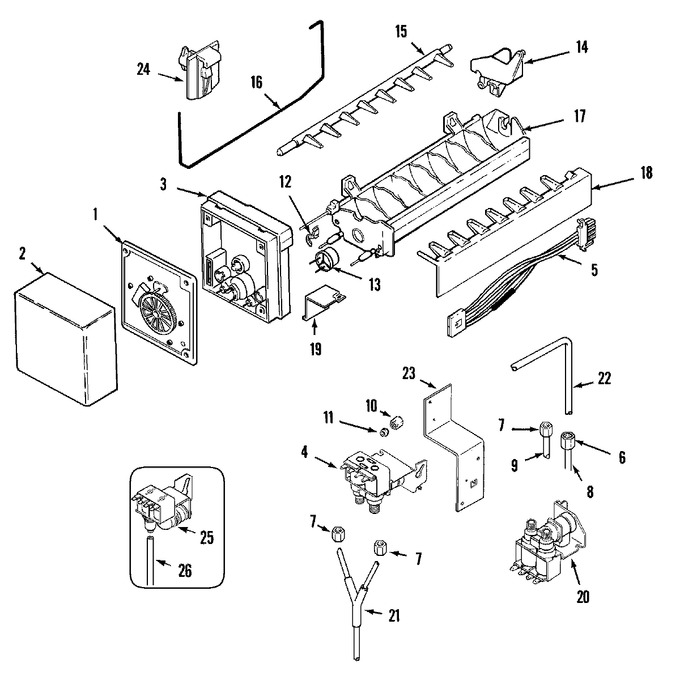

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | D7824706Q | Module, Ice Maker (Replaces:95109-1) | 10 |  |
||
| WP489478 | Screw (Replaces:400017-1) | 10 | |
|||
| 2 | 61005374 | Cover, Ice Maker | 10 | |
||
| 3 | 95103-1 | Support, Module Housing | 10 | |
||
| WP681249 | Screw (Replaces:95106-1) | 10 | |
|||
| 4 | WP489399 | Screw (Replaces:61001885) | 10 | |
||
| 12001892 | Valve, Water (filter) (Replaces:61003783) | 10 | |
|||
| 5 | 61005278 | Wire Harness, Ice Maker | 10 | |
||
| 6 | 8201513 | Nut, Compression (5/16``) (Replaces:69583-2) | 10 | |
||
| 7 | WP627018 | Nut, Compression (1/4``) (Replaces:69583-1) | 10 | |
||
| 8 | Y00000000 | See Note Must Order Tank Assy. Part No. 61003689 | 10 | |
||
| 9 | WPB5705307 | Tube, Valve (Replaces:67579-1) | 10 | |
||
| 10 | WP245183 | Nut, Brass (1/4``) (Replaces:69432-1) | 10 | |
||
| 11 | 69431-1 | Sleeve, Brass | 10 | |
||
| 12 | WP2315522 | Retainer, Thermostat (Replaces:95104-1) | 10 | |
||
| 13 | 876595 | Cement, Alumilastic (4 Oz.) (Replaces:95093-1) | 10 | |
||
| WP627985 | Thermostat (Replaces:95092-1) | 10 | |
|||
| 14 | WP628356 | Inlet, Water (Replaces:95100-1) | 10 | |
||
| 15 | WP627843 | Ejector, Ice (Replaces:95101-1) | 10 | |
||
| 16 | W11342242 | Arm, Sensor (Replaces:70142-1) | 10 | |
||
| 17 | D7824706Q | Mold & Heater Assy. (Replaces:95098-1) | 10 | |
||
| 18 | WP2182124 | Stripper, Ice (Replaces:95102-1) | 10 | |
||
| 19 | WP489128 | Screw, Bracket (Replaces:95108-1) | 10 | |
||
| WP2256087 | Bracket, Module & Heater (Replaces:95107-1) | 10 | |
|||
| 20 | WP489399 | Screw (Replaces:61001885) | 10 | |
||
| 61005626 | Valve, Water (ice Maker) (Replaces:61004823) | 10 | |
|||
| 61005626 | Valve, Water (ice Maker) | 11 | |
|||
| 21 | 61004391 | Grommet Assy., Water Line | 10 | |
||
| 61005058 | Clip, Water Line (adhesive) | 10 | |
|||
| 61001161 | Clamp, Water Line | 10 | |
|||
| 22 | 61004392 | Grommet Assy., Water Line | 10 | |
||
| 61005683 | Grommet Assy., Water Line | 11 | |
|||
| 23 | 61003732 | Bracket, Water Valve | 10 | |
||
| WP8281227 | Screw (Replaces:61002819) | 10 | |
|||
| 24 | WP61005028 | Support, Ice Maker | 10 | |
||
| 25 | WP61005627 | Valve, Water (filter) | 11 | |
||
| 26 | 61005682 | Grommet Assy., Water Line | 11 | |
