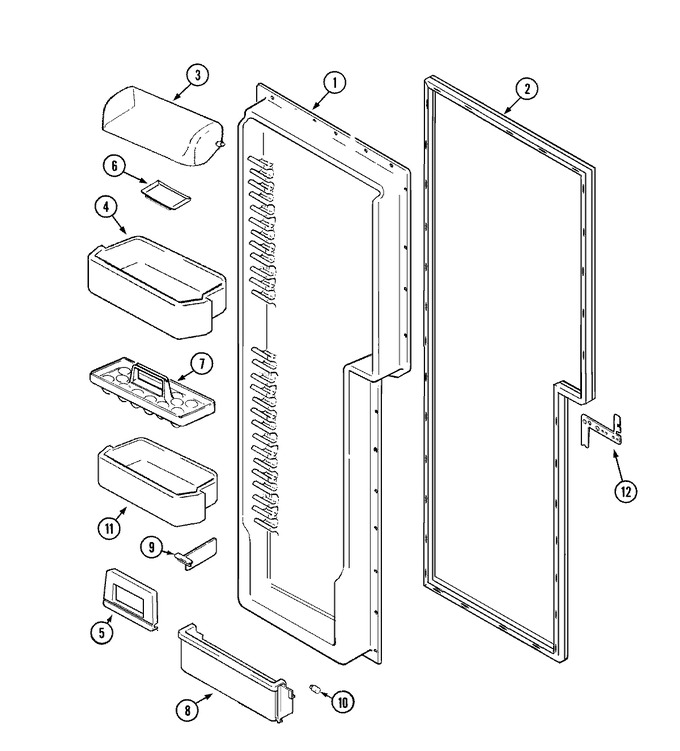

View Diagram in Separate Window
Print Part List
Move Mouse over Availability column to View Location Quantities-on-Hand
Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | 61005356 | Insert, Liner Support(top/btm) | 10 | |||
61005388 | Screw (Replaces:61005005) | 10 | ||||
12002004 | Liner, F.f. Door (Replaces:61005354) | 10 | ||||
61005355 | Insert, Liner Support (sides) | 10 | ||||
12002004 | Kit, F.f. Door Liner | 21 | ||||
2 | WP61005903 | Seal, F.f. Door (wht) (Replaces:61005357) | 10 | |||
3 | 61005358 | Door, Dairy | 10 | |||
4 | 61005361 | Shelf, Pick-off (upr) | 10 | |||
5 | 61002273 | Retainer, Bottle | 10 | |||
6 | 67004412A | Tray, Butter (Replaces:29936-2) | 10 | |||
7 | WP67004411 | Tray, Egg (Replaces:60066-1) | 10 | |||
8 | 61005359 | Bucket, Tip Out | 10 | |||
9 | 61002274 | Organizer, Shelf | 10 | |||
10 | 61002719 | Stop, Bucket | 10 | |||
WP61005929 | Stop, Bucket | 21 | ||||
11 | 61005360 | Shelf, Pick-off | 10 | |||
12 | 61005465 | Shim, Door Seal (wht) | 10 |
