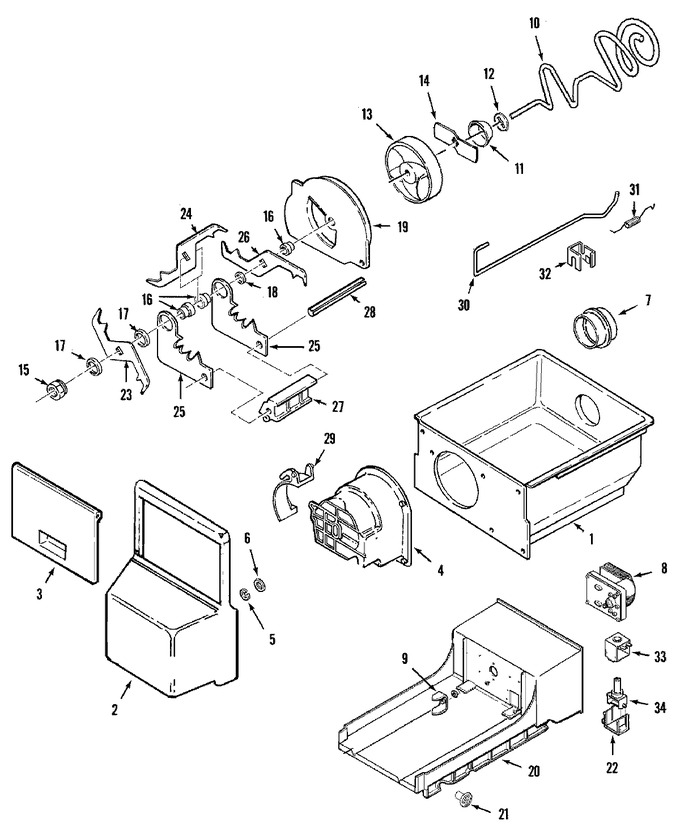

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | 61004802 | Bin, Ice | 10 | |||
2 | 61004864 | Front, Ice Bin | 10 | |||
415013-35 | Screw | 10 | ||||
3 | 61004327 | Door, Ice Bin | 10 | |||
4 | 61004804 | Housing, Crusher | 10 | |||
415013-35 | Screw | 10 | ||||
61004869 | Seal | 10 | ||||
5 | 69704-1 | Ring, Snap | 10 | |||
6 | 489234 | Washer, Retainer (Replaces:69703-1) | 10 | |||
7 | WP61003336 | Ring, Drive | 10 | |||
8 | 61005281 | Wire Harness, Auger Motor | 10 | |||
2006253 | Screw (Replaces:61003324) | 10 | ||||
12001773 | Assy., Auger Motor/yoke | 10 | ||||
9 | WP63052-2 | Yoke, Ice Dispenser (Replaces:63052-1) | 10 | |||
10 | 61003326 | Auger | 10 | |||
11 | 69699-1 | Cone, Ice Deflector | 10 | |||
12 | 69698-1 | Washer, Cone Stop | 10 | |||
13 | 70036-1 | Impeller | 10 | |||
14 | 69755-1 | Plate, Drive | 10 | |||
15 | 69709-1 | Nut, Auger | 10 | |||
16 | 69697-1 | Bearing, Spacer | 10 | |||
17 | 69696-1 | Spacer, Crusher Blade | 10 | |||
18 | 69696-2 | Spacer, Blade | 10 | |||
19 | 69701-1 | Plate, Impeller | 10 | |||
20 | WP67006908 | Screw (Replaces:400022-1) | 10 | |||
61005619 | Enclosure, Ice (Replaces:61005375) | 10 | ||||
21 | W11096517 | Support, Enclosure (Replaces:61005080) | 10 | |||
WP67006908 | Screw (Replaces:400022-1) | 10 | ||||
22 | 69715-1 | Guide, Yoke | 10 | |||
W11233072 | Screw (Replaces:400026-12) | 10 | ||||
23 | 69702-3 | Blade, Crusher | 10 | |||
24 | 69702-2 | Blade, Crusher | 10 | |||
25 | 69706-1 | Blade, Crusher | 10 | |||
26 | 69702-1 | Blade, Crusher | 10 | |||
27 | 69708-1 | Lock, Fixed Blade | 10 | |||
28 | 69705-1 | Pin, Blade Lock | 10 | |||
29 | 69718-1 | Door, Ice Crusher | 10 | |||
30 | 61004807 | Rod, Crusher Control | 10 | |||
31 | 61004808 | Spring, Control Rod | 10 | |||
32 | 61004809 | Bracket, Control Rod | 10 | |||
33 | 2006253 | Screw (Replaces:61003324) | 10 | |||
WP61005253 | Solenoid | 10 | ||||
34 | 61005844 | Yoke Assy. (Replaces:61003539) | 10 |
