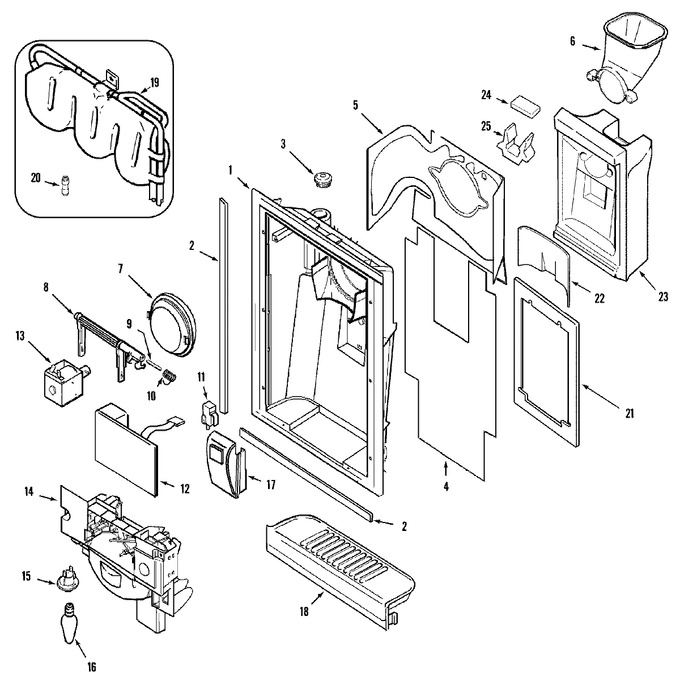

Diagram #	Part Number		Description	Series	Find a Video
1	61003307		Screw	10
	61004675		Housing, Fountain (wht)	10
	415013-35		Screw	10
2	WP61003286		Tape (1ft.)	10
3	61003300		Grommet, Water Tube	10
4	WP61003304		Foil, Ftn. Back	10
5	61005001		Heater, Fountain	10
6	415013-35		Screw	10
	WP61004677		Chute, Ice	10
7	12001991		Kit, Fountain Ice Door (115v)	10
8	Y00000000		See Note (strike Not Available Must Order Ice Door Kit 12001991)	10
9	WP9705445		Pin, Roll   (Replaces:61003303)	10
10	61004388		Spring, Ftn. Return	10
11	WP61005520		Switch, Limit   (Replaces:61003124)	10
	415041-35		Screw	10
12	WP61005274		Board, Control	10
	61005372		Barrier	10
13	Y00000000		See Note (solenoid Not Available Must Order Ice Door Kit 12001991)	10
	WP488234		Screw   (Replaces:61003297)	10
14	WP61003407		Bracket, Fountain (wht)	10
	415013-35		Screw	10
15	70119-1		Receptacle, Bulb	10
16	W10857122		Bulb, Light   (Replaces:63179-1)	10
17	61004441		Pad, Actuator (lt. Gry)	10
18	61003309		Grill (wht)	10
19	WP61003689		Tank Assy., Water	10
	WP67006908		Screw   (Replaces:400022-1)	10
20	WP2300868		Union, Reducing (5/16``-5/16``)   (Replaces:61001614)	10
21	WP61003339		Insulation	10
22	WP61003340		Insulation	10
23	61005373		Insulation, Ftn. (styrofoam)	10
24	WP61003343		Insulation	10
25	WP61003308		Insulation	10
26	61005275		Wire Harness, Ftn.	10
