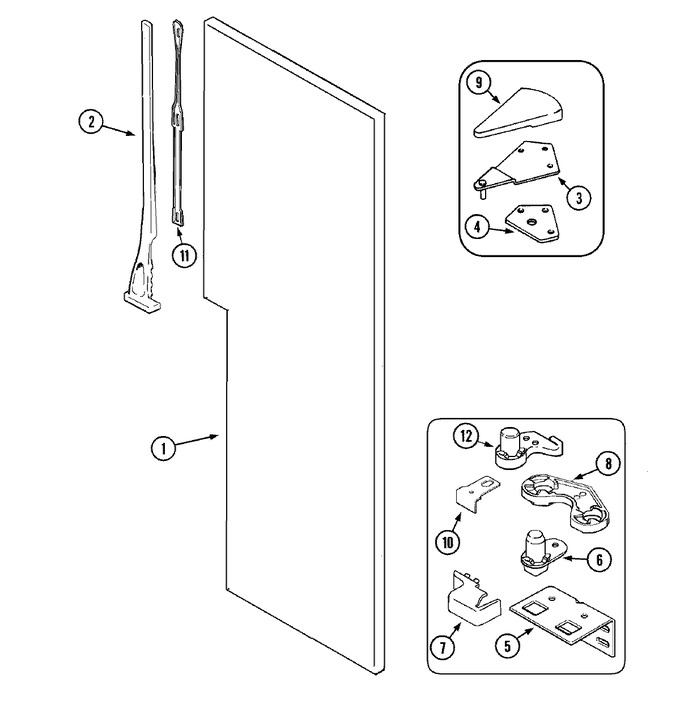

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | 61005685 | Label, Dual Energy Guide | 10 | |||
61005352 | Panel, F.f. Door (wht) | 10 | ||||
61005854 | Panel, F.f. Door (wht) | 13 | ||||
2 | 61005463 | Screw | 10 | |||
61005353 | Handle, F.f. Door (wht) | 10 | ||||
3 | WP3-24838-048 | Screw (Replaces:61004763) | 10 | |||
WP61004896 | Hinge, Upper | 10 | ||||
4 | 61001922 | Shim, Upper Hinge | 10 | |||
5 | 3400112 | Screw (Replaces:61003128) | 10 | |||
WP61001918 | Hinge, Lower (wht) | 10 | ||||
6 | WP61003174 | Pin, Lower Hinge | 10 | |||
7 | 61003220 | Cover, Lower Hinge (wht) | 10 | |||
8 | 61003647 | Closer, Door (natural) | 10 | |||
W10856122 | Screw (Replaces:61002180) | 10 | ||||
9 | 61004642 | Cover, Upper Hinge (wht) (Replaces:61004640) | 10 | |||
10 | 61003273 | Stop, Door | 10 | |||
W10856122 | Screw (Replaces:61002180) | 10 | ||||
11 | 61002912 | Anchor, Screw | 10 | |||
WP1163283 | Screw (Replaces:61005467) | 10 | ||||
61005462 | Screw | 10 | ||||
61005556 | Base, Handle (f.f.) | 10 | ||||
12 | WP61005724 | Closer, Door (w/cup) | 13 |
