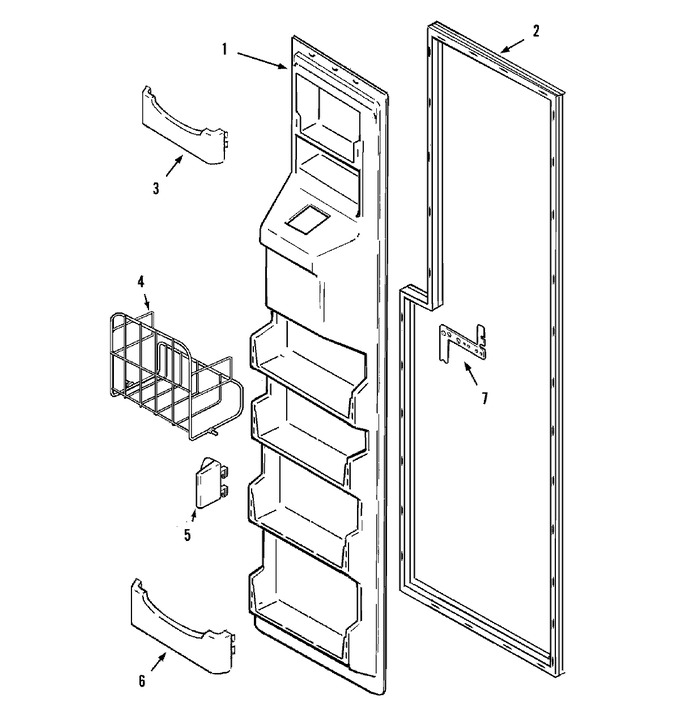

Diagram #	Part Number		Description	Series	Find a Video
1	61005367		Insert, Liner Support (side)	10
	61005366		Insert, Liner Support(top/btm)	10
	61005365		Liner, Frz. Door	10
	61005388		Screw   (Replaces:61005005)	10
2	WP61005907		Seal, Frz. Door (wht)   (Replaces:61005368)	10
3	61005369		Front, Pick-off (upr)	10
4	61005370		Basket, Tiltdown	10
5	61003754		Stop, Basket (rt)	10
	61003753		Stop, Basket (lt)	10
6	61005371		Front, Pick-off (lwr)	10
7	61005465		Shim, Door Seal (wht)	10
