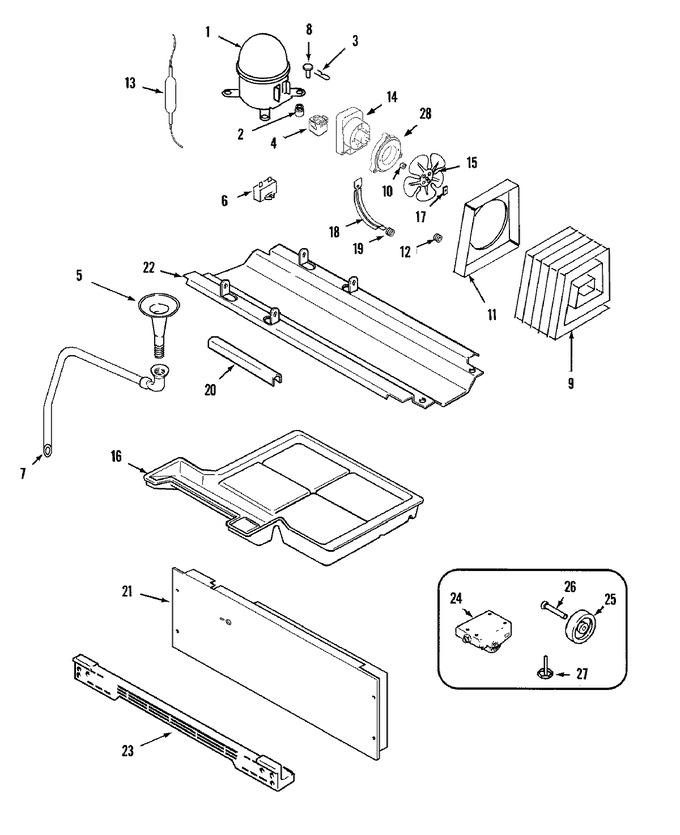

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | W10160407 | Kit, Compressor (r134a) (Replaces:12002164) | 27 |  |
||
| W10309995 | Kit, Compressor (r134a) (Replaces:12002053) | 22 | |
|||
| 61005322 | Wire Harness, Compressor | 10 | |
|||
| W10309995 | Kit, Compressor (r134a) (Replaces:12001834) | 10 | |
|||
| 2 | WP4387558 | Grommet, Compressor (Replaces:61005241) | 10 | |
||
| 67003493 | Grommet, Compressor (Replaces:10835901) | 27 | |
|||
| 3 | 61005561 | Clip, Compressor (Replaces:61003099) | 10 | |
||
| 4 | 12002784 | Relay/overload Assy. (Replaces:61005271) | 10 | |
||
| 61005620 | Clip, Relay/overload Assy.-na | 10 | |
|||
| 12002794 | Relay/overload Assy. (Replaces:61006186) | 27 | |
|||
| 61006187 | Clip, Relay/overload Assy. | 27 | |
|||
| 5 | 61004751 | Tube, Drain | 10 | |
||
| 6 | WP489478 | Screw (Replaces:400017-1) | 10 | |
||
| WP65889-4 | Capacitor, Run | 10 | |
|||
| 7 | 53516-9 | Clamp | 10 | |
||
| WP61003133 | Hose, Drain | 10 | |
|||
| 8 | 52656-2 | Plug, Compressor | 10 | |
||
| 9 | 61005452 | Condenser (Replaces:61003814) | 10 | |
||
| WP489399 | Screw (Replaces:61004378) | 10 | |
|||
| 10 | WPM0274039 | Washer, Fan Blade (Replaces:61001686) | 10 | |
||
| 11 | 61001941 | Shroud, Condenser | 10 | |
||
| 12 | 61002033 | Grommet, Condenser Tubing | 10 | |
||
| 13 | WPW10143759 | Drier (Replaces:13900-1) | 10 | |
||
| 14 | WP90767 | Screw (Replaces:61005324) | 10 | |
||
| WP61005323 | Motor, Condenser Fan | 10 | |
|||
| 15 | WP12587601 | Blade, Condenser Fan (Replaces:60683-1) | 10 | |
||
| 16 | WP489478 | Screw (Replaces:400017-1) | 10 | |
||
| 61004095 | Pan, Drain (Replaces:61002649) | 10 | |
|||
| 17 | WP486692 | Clip, Fan Blade (Replaces:19914) | 10 | |
||
| 18 | 69181-1 | Bracket, Fan Motor | 10 | |
||
| 19 | WP61004743 | Grommet, Bracket | 10 | |
||
| 20 | 61004584 | Isolator, Condenser | 10 | |
||
| 21 | 61004674 | Cover, Compressor Compartment | 10 | |
||
| WP489069 | Screw (Replaces:65275-50) | 10 | |
|||
| 22 | WP67006715 | Screw (Replaces:61002407) | 10 | |
||
| 61005269 | Pan, Compressor Mtg. | 10 | |
|||
| 23 | 61004053 | Kickplate (wht) | 10 | |
||
| 400016-1 | Screw | 10 | |
|||
| 24 | WP489478 | Screw (Replaces:400017-1) | 10 | |
||
| 61005232 | Wheel Assy. (frt) | 10 | |
|||
| 25 | WP61003826 | Wheel (rear) | 10 | |
||
| 26 | WP61002104 | Pin, Wheel | 10 | |
||
| 27 | 61002014 | Leg, Leveling | 10 | |
||
| 28 | 61005326 | Screw | 10 | |
||
| 61005325 | Adapter, Fan Motor | 10 | |
|||
| 29 | 12001548 | Yoder Loop Htr(115v)27,29,23cd | 10 | |
||
| 30 | 61005298 | Manual, Use & Care (trilngul) | 10 | |
||
| 31 | 16009103 | Manual, Service Sxs Apd | 10 | |
