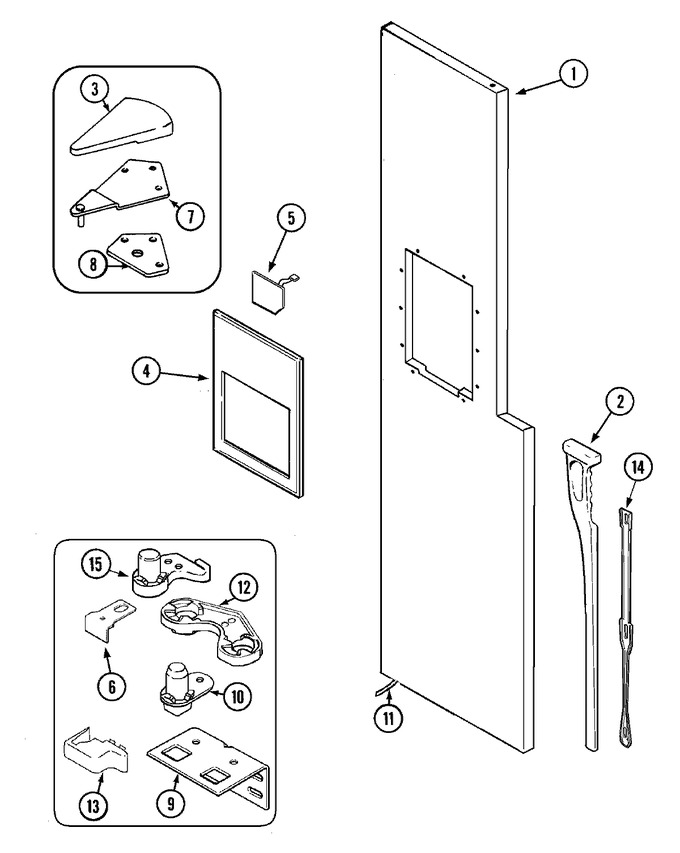

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | 61005879 | Panel, Frz. Door (wht) | 13 | |||
61005362 | Panel, Frz. Door (wht) | 10 | ||||
2 | 61005463 | Screw | 10 | |||
61005363 | Handle, Frz. Door (wht) | 10 | ||||
3 | 61004642 | Cover, Upper Hinge (wht) | 10 | |||
WP8281196 | Screw, Cover (Replaces:61004641) | 10 | ||||
4 | 61005364 | Escutcheon (wht) | 10 | |||
415013-35 | Screw | 10 | ||||
5 | WP61005277 | Board, Ftn. Switch | 10 | |||
61003422 | Screw | 10 | ||||
6 | 61003273 | Stop, Door | 10 | |||
W10856122 | Screw (Replaces:61002180) | 10 | ||||
7 | WP3-24838-048 | Screw (Replaces:61004763) | 10 | |||
WP61004896 | Hinge, Upper | 10 | ||||
8 | 61001922 | Shim, Upper Hinge | 10 | |||
9 | WP61001918 | Hinge, Lower (wht) | 10 | |||
3400112 | Screw (Replaces:61003128) | 10 | ||||
10 | WP61003174 | Pin, Lower Hinge | 10 | |||
11 | WP2300868 | Union, Reducing (5/16``-5/16``) (Replaces:61001614) | 10 | |||
61004569 | Tubing, Fountain | 10 | ||||
12 | 61003647 | Closer, Door (natural) | 10 | |||
W10856122 | Screw (Replaces:61002180) | 10 | ||||
13 | 61003219 | Cover, Lower Hinge (wht) | 10 | |||
14 | 61005462 | Screw | 10 | |||
61005557 | Base, Handle (frz.) | 10 | ||||
61002912 | Anchor, Screw | 10 | ||||
WP1163283 | Screw (Replaces:61005467) | 10 | ||||
15 | 61005726 | Closer, Door (w/cup) | 13 |
