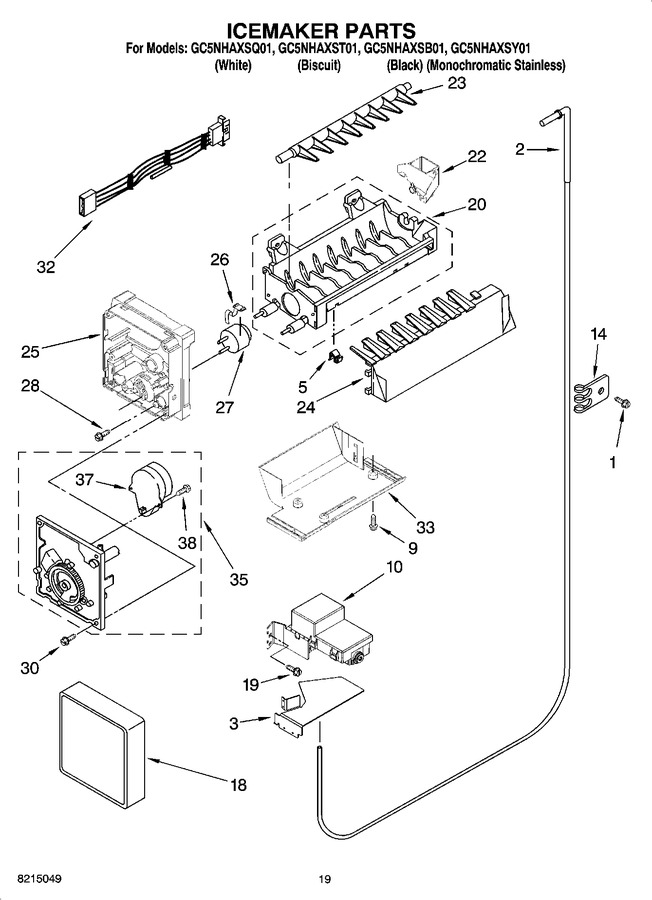

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | 489084 | Screw |  |
|||
| 2 | WP2256096 | Fitting, Water Tube | |
|||
| 3 | WPW10199264 | Shield, Water Valve (Replaces:2313394) | |
|||
| 5 | WP628379 | Clip, Fuse | |
|||
| 9 | WP489478 | Screw | |
|||
| 10 | WPW10159840 | Water Valve Asm (Replaces:2319734) | |
|||
| 14 | WP488366 | Tube Clip (Replaces:2305274) | |
|||
| 18 | WPW10289690 | Cover (Replaces:2174358) | |
|||
| 19 | WP488649 | Screw | |
|||
| 20 | WPW10190929 | Mold & Heater Assembly (also Order 542638) (Replaces:628228) | |
|||
| 22 | WP628356 | Cup-water Fill | |
|||
| 23 | WP627843 | Ejector | |
|||
| 24 | W10297244 | Ice Stripper (Replaces:2198598) | |
|||
| 25 | WP2195914 | Support (Replaces:2194712) | |
|||
| 26 | WP2315522 | Retainer, Thermostat | |
|||
| 27 | WP627985 | Thermostat (also Order 542369 Cement Alumilastic) | |
|||
| 28 | 8533917 | Screw | |
|||
| 30 | WP681249 | Screw (Replaces:489276) | |
|||
| 32 | WP2187467 | Harness, Wiring | |
|||
| 33 | WP2303583 | Bracket, Ice Maker Mounting | |
|||
| 35 | 8201515 | Module Assembly (includes Items 37 & 38) (Replaces:626678) | |
|||
| 37 | W10190935 | Motor (Replaces:626676) | |
|||
| 38 | 489136 | Screw | |
|||
| 100 | 2198597 | Complete Icemaker Assembly | |
|||
| WP1117510 | Torx Key | |
||||
| WP4317852 | Cement, Alumilastic 1-1/4 Oz.) (Replaces:542639) | |
||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White | |
||||
| 8171357 | Paint, Pressurized Spray (12 Oz.) (graphite) | |
||||
| WP80051 | Paint, Touch-up (1/2oz.) (graphite) | |
||||
| 4392899 | Paint, Touch-up (1/2oz.) (biscuit) | |
||||
| 799340 | Paint, Bulk (1 Qt.) (enamel, Black) | |
||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) | |
||||
| 8171358 | Paint, Bulk (1qt.) (graphite) | |
||||
| 4392900 | Paint, Bulk (1 Qt.) (biscuit) (uncut) | |
||||
| 212643 | Sealer, Gum (4 Feet) | |
||||
| W11238399 | Tape, Vinyl 3/4 X 108``) (Replaces:479502) | |
||||
| WP542638 | Grease, Silicone (1/2 Oz.) | |
||||
| 799833 | Kit, Evaporator Repair (aluminum Epoxy) | |
||||
| 833938 | Kit, Terminal Connector | |
||||
| WP503695 | Cork, Sealer 1/4 Pound) | |
||||
| WP505587 | Sealer, Mastic (1 Qt.). | |
||||
| 72032 | Paint, Touch-up 1/2 Oz. (black) | |
||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) | |
||||
| 4392901 | Paint, Pressurized Spray (12oz.) (biscuit) | |
||||
| 350942 | Paint, Pressurized Spray (12 Oz.) (primer, White) | |
||||
| 285006 | Paint, Pressurized Spray (12 Oz.) (black) (Replaces:350939) | |
