Diagram for 01 - Cabinet Parts
01 - Cabinet Parts

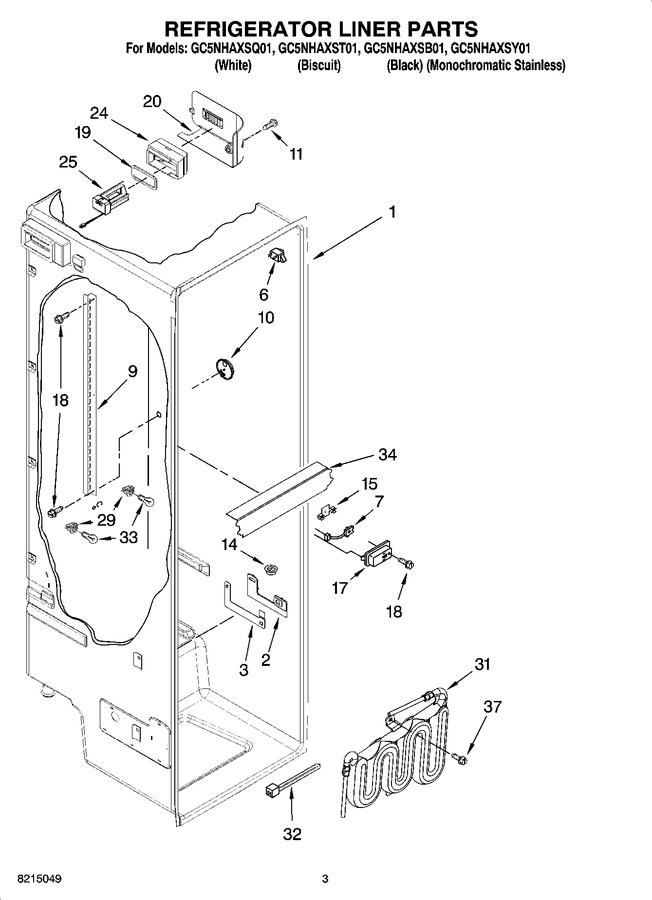

Diagram for 02 - Refrigerator Liner Parts
02 - Refrigerator Liner Parts

Diagram for 03 - Refrigerator Shelf Parts
03 - Refrigerator Shelf Parts

Diagram for 04 - Freezer Liner Parts
04 - Freezer Liner Parts

Diagram for 05 - Motor And Ice Container Parts
05 - Motor And Ice Container Parts

Diagram for 06 - Refrigerator Door Parts
06 - Refrigerator Door Parts

Diagram for 07 - Freezer Door Parts
07 - Freezer Door Parts

Diagram for 08 - Dispenser Front Parts
08 - Dispenser Front Parts

Diagram for 09 - Air Flow Parts
09 - Air Flow Parts

Diagram for 10 - Control Parts
10 - Control Parts

Diagram for 11 - Unit Parts
11 - Unit Parts

Diagram for 12 - Icemaker Parts, Optional Parts (not Included)
12 - Icemaker Parts, Optional Parts (not Included)


New Model Search:



Manufacturer: Whirlpool

Keyword Search:


< Back to Home

Diagram # Part Number Description Series Find a Video
2 2223524 Escutcheon, Meat Pan Control Find a Video
3 2223339 Slide Meat Pan Control Find a Video
6 W11384469 Switch, Rocker Arm   (Replaces:1118894) Find a Video
7 WP2188820 Thermistor Find a Video
9 2223456 Ladder, Shelf (2) Find a Video
10 2261601 Housing, Door Control Find a Video
11 489084 Screw Find a Video
14 2171846 Release Valve Find a Video
15 2209204 Clip, Thermistor Find a Video
17 1116793 Cover, Thermistor Find a Video
18 WP489478 Screw Find a Video
19 2304597 Gasket, Air Baffle Find a Video
20 2223403 Cover, Air Baffle Find a Video
24 WP2224076 Air Diffuser Assembly Find a Video
25 WP2220377 Air Baffle Find a Video
29 4387478 Socket   (Replaces:2162085) Find a Video
31 WPW10276792 Reservoir   (Replaces:2307107) Find a Video
32 WP2205813 Strap   (Replaces:2307062) Find a Video
33 8009 Light Bulb   (Replaces:2255743) Find a Video
34 2223663 Light Lens Find a Video
37 798639 Screw   (Replaces:488280) Find a Video

    View Diagram in Separate Window     Print Icon   Print Part List
  Move Mouse over Availability column to View Location Quantities-on-Hand

Diagram for GC5NHAXSY01
