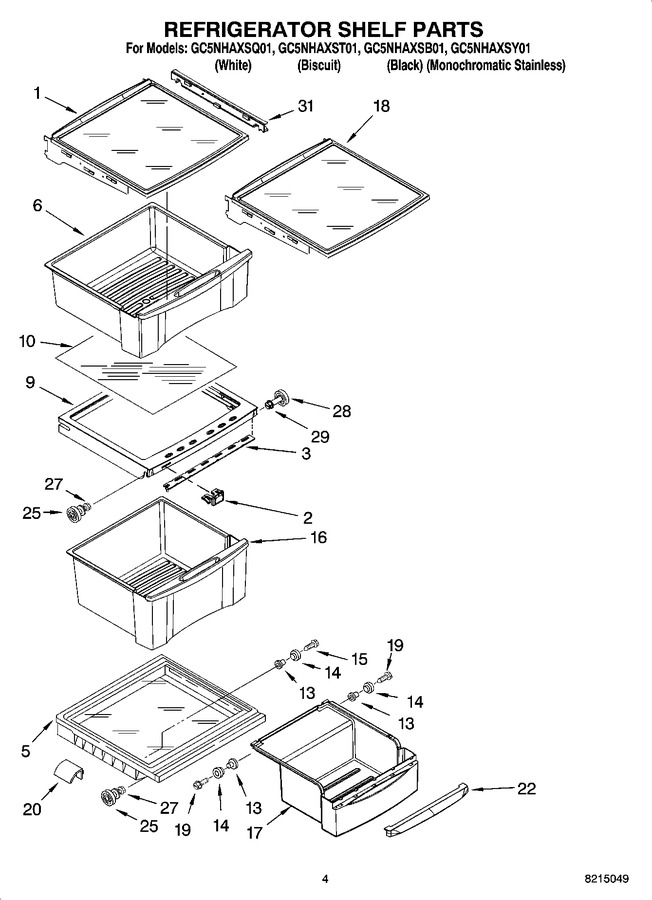

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | WP2223288 | Shelf Assembly |  |
|||
| 2 | 2223309 | Button, Humidity | |
|||
| 3 | 2223308 | Slide, Humidity | |
|||
| 5 | WPW10270150 | Cover, Meat Pan (includes Items 13, 14, 15 & 20) (Replaces:2203027) | |
|||
| 6 | WPW10233485 | Snack Pan (Replaces:2223261) | |
|||
| 9 | WP2223307 | Cover, Crisper (includes 2 & 3) | |
|||
| 10 | WP2223591 | Glass, Cover | |
|||
| 13 | WP2174478 | Eyelet, Roller | |
|||
| 14 | 4318078 | Roller (Replaces:2188212) | |
|||
| 15 | WPW10272364 | Screw (Replaces:489211) | |
|||
| 16 | WPW10233488 | Crisper Pan (includes 13 14 & 19) (Replaces:2223235) | |
|||
| 17 | 2318569 | Meat Pan (includes 13, 14, 19 & 22) (Replaces:2223526) | |
|||
| 18 | W10235943 | Shelf And Frame Assembly (3) (Replaces:2224059) | |
|||
| 19 | WP489261 | Screw | |
|||
| 20 | 2223487 | Deflector | |
|||
| 22 | 2203029 | Handle | |
|||
| 25 | W11223328 | Stud Assembly (Replaces:2196485) | |
|||
| 27 | WP3-24004-109 | Screw (Replaces:3400894) | |
|||
| 28 | WP2196483 | Stud Assembly | |
|||
| 29 | WP3400806 | Screw (Replaces:8281158) | |
|||
| 31 | WP2223320 | Slide, Pan | |
