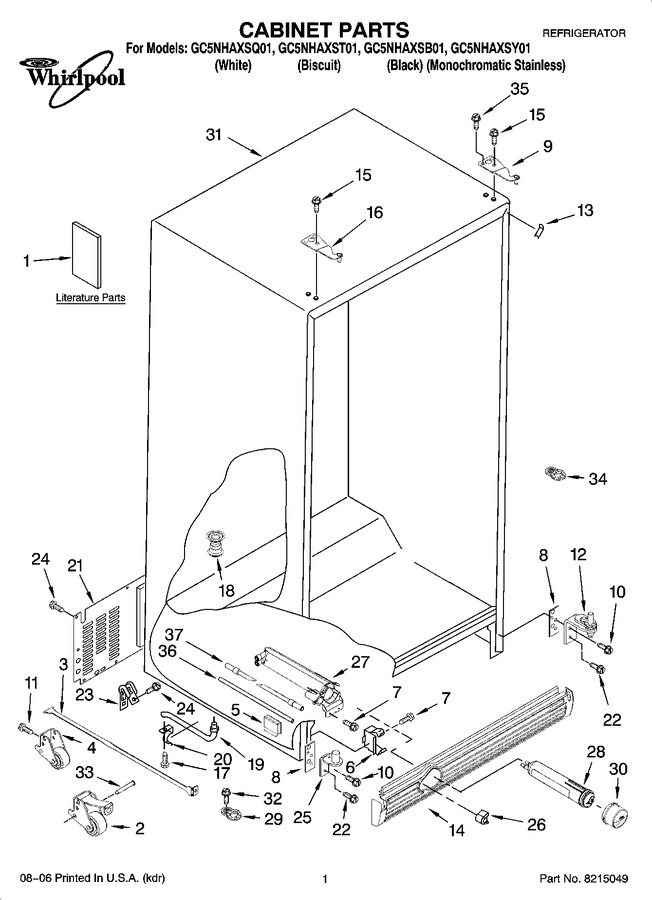

01 - Cabinet Parts

Diagram for 02 - Refrigerator Liner Parts
02 - Refrigerator Liner Parts

Diagram for 03 - Refrigerator Shelf Parts
03 - Refrigerator Shelf Parts

Diagram for 04 - Freezer Liner Parts
04 - Freezer Liner Parts

Diagram for 05 - Motor And Ice Container Parts
05 - Motor And Ice Container Parts

Diagram for 06 - Refrigerator Door Parts
06 - Refrigerator Door Parts

Diagram for 07 - Freezer Door Parts
07 - Freezer Door Parts

Diagram for 08 - Dispenser Front Parts
08 - Dispenser Front Parts

Diagram for 09 - Air Flow Parts
09 - Air Flow Parts

Diagram for 10 - Control Parts
10 - Control Parts

Diagram for 11 - Unit Parts
11 - Unit Parts

Diagram for 12 - Icemaker Parts, Optional Parts (not Included)
12 - Icemaker Parts, Optional Parts (not Included)


New Model Search:



Manufacturer: Whirlpool

Keyword Search:


< Back to Home

Diagram # Part Number Description Series Find a Video
1 2318634 Energy Guide Find a Video
2318510 Installation Instructions Find a Video
2220407 Modular Icemaker Service Sheet Find a Video
2318508 Use & Care Guide Find a Video
2303906 Service Sheet Find a Video
2303910 Service Sheet Find a Video
2 WPW10199223 Front Roller Asm (right Side)   (Replaces:2306951) Find a Video
2306950 Front Roller Asm (left Side) Find a Video
3 2223263 Strap, Roller Find a Video
4 WPW10173132 Roller, Rear (2)   (Replaces:2306949) Find a Video
5 W11545866 Clip, Retainer (4)   (Replaces:2223388) Find a Video
6 WP2155013 Clip, Grille Find a Video
7 WP489478 Screw Find a Video
8 2223545 Shim Find a Video
9 2307008W Hinge Top, Rc (white) Find a Video
2307008T Hinge Top, Rc (biscuit) Find a Video
2307008B Hinge Top, Rc (black) Find a Video
2307008AP Hinge Top, Rc (apollo Gray) Find a Video
10 WP489497 Screw   (Replaces:3400113) Find a Video
11 3400243 Screw Find a Video
12 WP2307179 Hinge Assembly, Bottom-rc (includes 34) Find a Video
13 2223893B Filler, Wrapper (black) Find a Video
2223893AP Filler, Wrapper (apollo Gray) Find a Video
2223893T Filler, Wrapper (biscuit) Find a Video
2223893W Filler, Wrapper (white) Find a Video
14 W10194058 Grille (biscuit)   (Replaces:2322206T) Find a Video
2322206W Grille (white) Find a Video
2322206AP Grille (apollo Gray) Find a Video
2322206B Grille (black) Find a Video
15 3400108 Screw Find a Video
16 2307007T Hinge, Top Fc (biscuit) Find a Video
2307007AP Hinge, Top Fc (apollo Gray) Find a Video
2307007B Hinge, Top Fc (black) Find a Video
17 WP489464 Screw Find a Video
18 WP2304888 Drain Fitting   (Replaces:940139) Find a Video
19 2199954 Tube, Extension Find a Video
20 WP1108439 Clip, Drain Tube Find a Video
21 2223409 Cover, Unit Find a Video
22 WP489483 Screw Find a Video
23 WP3196256 Clamp-service Cord   (Replaces:549193) Find a Video
24 489084 Screw Find a Video
25 WP2307152 Hinge Assembly, Bottom-fc (includes 29 & 32) Find a Video
26 2260503T Button, Water Filter (biscuit) Find a Video
2260503W Button, Water Filter (white) Find a Video
2260503AP Button, Water Filter (apollo Gray) Find a Video
WP2260503B Button, Water Filter (black) Find a Video
27 WPW10121140 Housing, Water Filter   (Replaces:2260526) Find a Video
28 EDR3RXD1 Water Filter   (Replaces:4396710) Find a Video
29 2307051 Door Closer, Fc Find a Video
30 WP2260518W Cap, Water Filter (white) Find a Video
WP2260518AP Cap, Water Filter (apollo Gray) Find a Video
WP2260518B Cap, Water Filter (black) Find a Video
2260518T Cap, Water Filter (biscuit) Find a Video
32 WP489483 Screw Find a Video
33 2223387 Pin, Roller (4) Find a Video
34 WP2307049 Door Closer (rc) Find a Video
35 W10853301 Screw   (Replaces:3400858) Find a Video
36 W11496481 Tube, Filter Outlet   (Replaces:2224020) Find a Video
37 8201597 Tube, Filter Inlet   (Replaces:2319868) Find a Video
