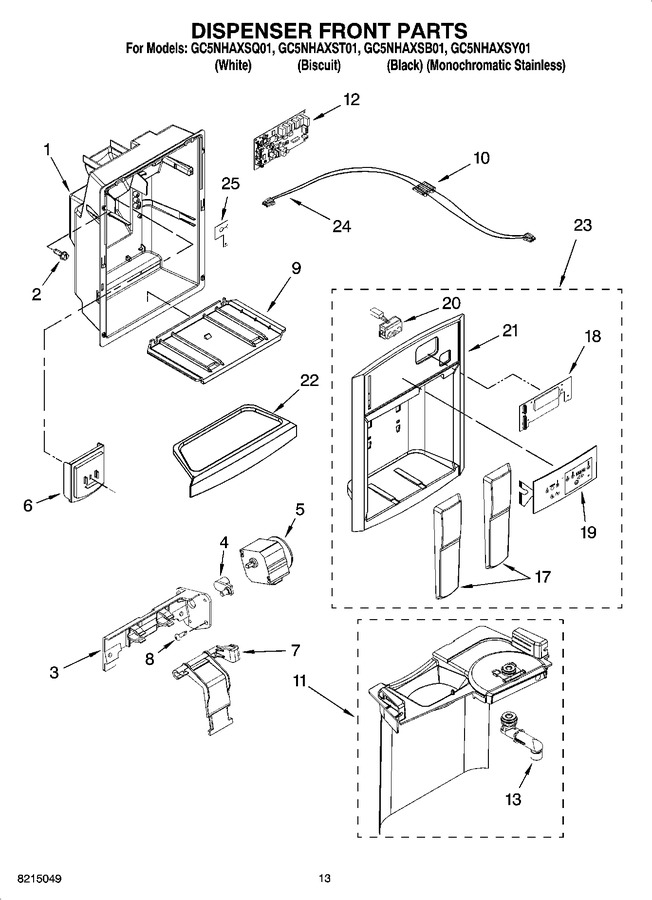

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 2 | WP939101 | Screw (4) |  |
|||
| 3 | WP2305202 | Bracket, Motor | |
|||
| 4 | WP2305242 | Connector, Door Bracket | |
|||
| 5 | WPW10184813 | Motor, Ice Door (Replaces:2305262) | |
|||
| 6 | WP2305258 | Door, Ice | |
|||
| 7 | WP2305204 | Support, Ice Door | |
|||
| 8 | WP4449745 | Screw (2) | |
|||
| 9 | 2305413AP | Grille, Slide (apollo Gray) | |
|||
| 2305413B | Grille, Slide (black) | |
||||
| 2305413T | Grille, Slide (biscuit) | |
||||
| 2305413W | Grille, Slide (white) | |
||||
| 10 | 2308165 | Ferrite Bead | |
|||
| 11 | 2305460US | Separator Assembly (universal Silver) | |
|||
| 2305460W | Separator Assembly (white) | |
||||
| 2305460B | Separator Assembly (black) | |
||||
| 2305460T | Separator Assembly (biscuit) | |
||||
| 12 | WP2303843 | Electronic Control (core) | |
|||
| 13 | WP2305235 | Spigot | |
|||
| 17 | 2305247CG | Pad, Ice & Water (for White Model) | |
|||
| 2305247GM | Pad, Ice & Water (for Black Model) | |
||||
| 2305247WL | Pad, Ice & Water (for Biscuit Model) | |
||||
| 2305247MG | Pad, Ice & Water (for Monochromatic Stainless Model) | |
||||
| 18 | WP2304170 | Cover, Electronic Control | |
|||
| 20 | 2317205 | Led Assembly | |
|||
| 22 | 2305408W | Tray, Housing (white) | |
|||
| 2305408T | Tray, Housing (biscuit) | |
||||
| 2305408B | Tray, Housing (black) | |
||||
| 2305408US | Tray, Housing (universal Silver) | |
||||
| 23 | 2317715W | Front Cover Assembly (includes Items 17, 18, 19, 20 & 21) (white) | |
|||
| 2317715T | Front Cover Assembly (includes Items 17, 18, 19, 20 & 21) (biscuit) | |
||||
| 2317715B | Front Cover Assembly (includes Items 17, 18, 19, 20 & 21) (black) | |
||||
| 2317715US | Front Cover Assembly (includes Items 17, 18, 19, 20 & 21) (universal Silver) | |
||||
| 24 | 2187814 | Wire Assembly, User Interface (includes 10) | |
|||
| 25 | 2305447 | Clip, Wiring | |
