Diagram # Part Number Description Series Find a Video
1 WP488234 Screw   (Replaces:777070) Find a Video
2 8201630 Fan Blade   (Replaces:2225834) Find a Video
3 W10193018 Condenser Assembly   (Replaces:2223315) Find a Video
4 8281197 Screw Find a Video
5 3400524 Screw (6) Find a Video
6 2223703 Housing, Control Board Find a Video
7 W10528579 Tube Suction   (Replaces:2223351) Find a Video
8 2162499 Sleeve   (Replaces:2161302) Find a Video
10 2301979 Plate, Mounting Find a Video
11 WP8281196 Screw Find a Video
12 2215676 Cover, Terminal Find a Video
14 2185960 Clamp, Cable   (Replaces:2305373) Find a Video
15 WP488649 Screw Find a Video
18 2223353 Tube, Condenser To Heat Loop Find a Video
19 WPW10219463 Electronic Control   (Replaces:2307028) Find a Video
20 2306932 Baseplate Find a Video
21 WP489478 Screw Find a Video
22 WP2188823 Evaporator Find a Video
23 WP2161324 Clamp Find a Video
24 W10124096 Fan, Motor   (Replaces:2188729) Find a Video
25 2223398 Tray, Evaporator Find a Video
26 2224022 Heat Shield Find a Video
27 W10843121 Drier   (Replaces:2319825) Find a Video
28 8201675 Compressor (includes Items 12 & 39)   (Replaces:2223801) Find a Video
29 2223800 Spacer (5) Find a Video
31 WP2310122 Harness, Main Control Find a Video
32 2224024 Fan, Motor Bracket Find a Video
33 WP2210737 Heater, Defrost Find a Video
34 2304287 Clip Find a Video
36 W10629033 Inverter Box   (Replaces:2304175) Find a Video
37 876811 Screw   (Replaces:489473) Find a Video
38 2223352 Tube, Discharge Find a Video
39 4388295 Grommet (4) (production)   (Replaces:2183042) Find a Video
WP4387558 Grommet (4) (service) Find a Video
41 2223394 Extension, Air Baffle Find a Video
42 2155547 Clip, Heat Shield Find a Video
45 2310121 Unit Harness Find a Video
63 WP978025 Valve, Access (1/4``) Find a Video
978030 Valve, Access (3/4``) Find a Video
876764 Valve, Access(3/16``) Find a Video
WP2300868 Connector, Water Tube Find a Video
978026 Valve, Access (5/16``) Find a Video
978027 Valve, Access (3/8``) Find a Video
978028 Valve, Access (1/2) Find a Video
978029 Valve Access (5/8``) Find a Video

    View Diagram in Separate Window     Print Icon   Print Part List
  Move Mouse over Availability column to View Location Quantities-on-Hand

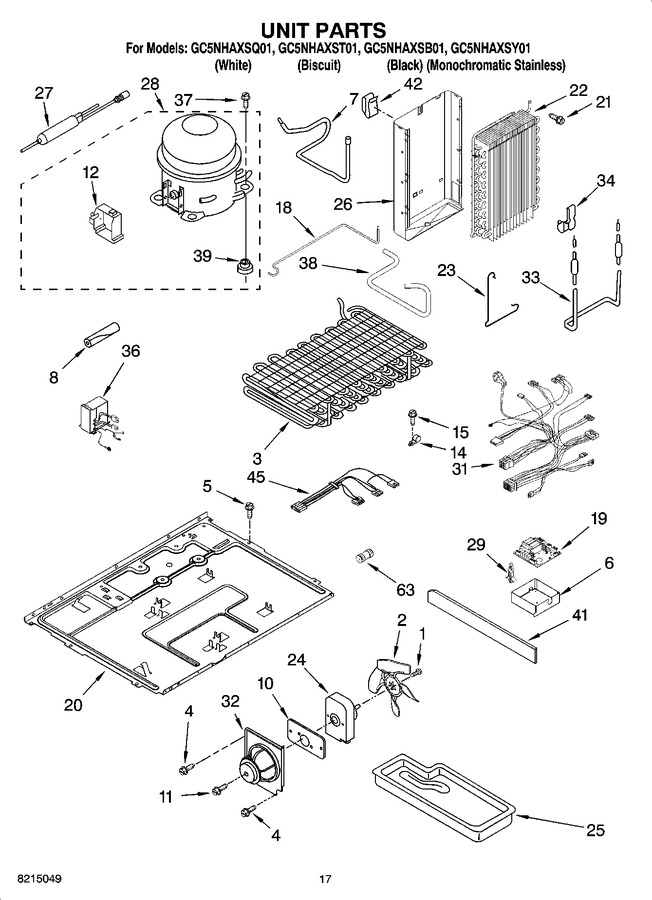

Diagram for GC5NHAXSY01
