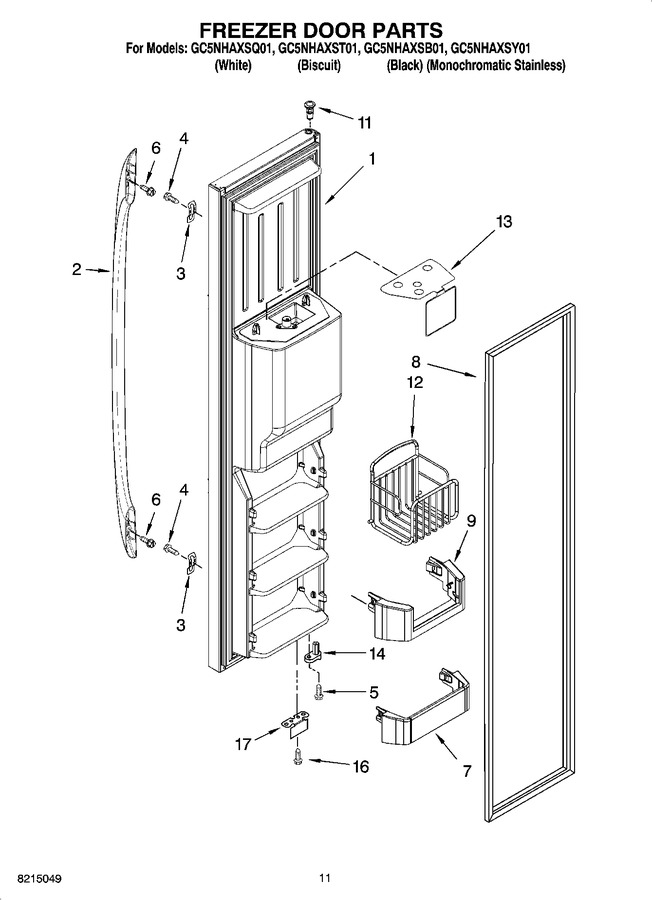

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | 2319796B | Freezer Door (includes 8 And Dispenser Front Parts) (black) |  |
|||
| 2319796S | Freezer Door (includes 8 And Dispenser Front Parts) (monochromatic Stainless) | |
||||
| 2319796W | Freezer Door (includes 8 And Dispenser Front Parts) (white) | |
||||
| 2319796T | Freezer Door (includes 8 And Dispenser Front Parts) (biscuit) | |
||||
| 2 | WP2313351B | Handle (includes 6) (black) | |
|||
| 2313351US | Handle (includes 6) (universal Silver) | |
||||
| WP2313351T | Handle (includes 6) (biscuit) | |
||||
| WP2313351W | Handle (includes 6) (white) | |
||||
| 3 | WP2255411 | Clip, Mounting | |
|||
| 4 | WP489491 | Screw | |
|||
| 5 | WP3400012 | Screw | |
|||
| 6 | WP8533920 | Screw | |
|||
| 7 | WP2171157 | Shelf Bin (Replaces:2171157K) | |
|||
| 8 | 2306995 | Door Gasket, Magnetic (black) (Replaces:2223910) | |
|||
| 2306991 | Door Gasket, Magnetic (mist Beige) (Replaces:2223325) | |
||||
| 9 | WP2223334 | Trivet, Tilt-out (2) | |
|||
| 11 | 2301049 | Thimble, Top (Replaces:2308050) | |
|||
| 12 | WP2304309 | Basket, Tilt-out (2) | |
|||
| 13 | 2304895 | Safety Barrier | |
|||
| 14 | 2307050 | Door Closer, Upper Cam | |
|||
| 16 | WP489483 | Screw (Replaces:489420) | |
|||
| 17 | 2306940 | Bracket, Door Stop (chrome) | |
|||
| 2306940B | Bracket, Door Stop (black) | |
||||
| 2310226 | Wire Assembly, Freezer Door | |
||||
| WP2317708 | Tube, Door | |
