| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | 2322204W | Refrigerator Door (includes 7) (white) |  |
|||
| 2322204T | Refrigerator Door (includes 7) (biscuit) | |
||||
| 2322204B | Refrigerator Door (includes 7) (black) | |
||||
| 2322200SAP | Refrigerator Door (includes 7) (monochromatic Stainless) | |
||||
| 2 | WP2203087 | Trim, Shelf (Replaces:2203087K) | |
|||
| 3 | WP2255421 | Dairy Door | |
|||
| 6 | WP2255411 | Clip, Mounting | |
|||
| 7 | 2306996 | Door Gasket, Magnetic (black) (Replaces:2223909) | |
|||
| 2306992 | Door Gasket, Magnetic (mist Beige) (Replaces:2223326) | |
||||
| 8 | WP2313351W | Handle (includes 9) (white) | |
|||
| 2313351US | Handle (includes 9) (universal Silver) | |
||||
| WP2313351B | Handle (includes 9) (black) | |
||||
| WP2313351T | Handle (includes 9) (biscuit) | |
||||
| 9 | WP8533920 | Screw | |
|||
| 10 | WP2223879 | Dairy Compartment | |
|||
| 11 | WP489491 | Screw | |
|||
| 12 | 2307048 | Door Closer, Upper Cam | |
|||
| 13 | 2301049 | Thimble, Top (Replaces:2308050) | |
|||
| 14 | WP489483 | Screw (Replaces:489420) | |
|||
| 15 | 2306940 | Bracket, Door Stop (chrome) | |
|||
| 2306940B | Bracket, Door Stop (black) | |
||||
| 16 | WPW10158506 | Door Bin (2) (Replaces:2223239K) | |
|||
| 17 | WP3400012 | Screw | |
|||
| 18 | WP2224173 | Door Bin, Shallow | |
|||
| 20 | WP2156006 | Plug, Trim (Replaces:2156006K) | |
|||
| 21 | WP2220214 | Nameplate | |
|||
| 22 | WP2223463K | Door Bin | |
|||
| 23 | WP2223464KA | Mat (3) (Replaces:2223464K) | |

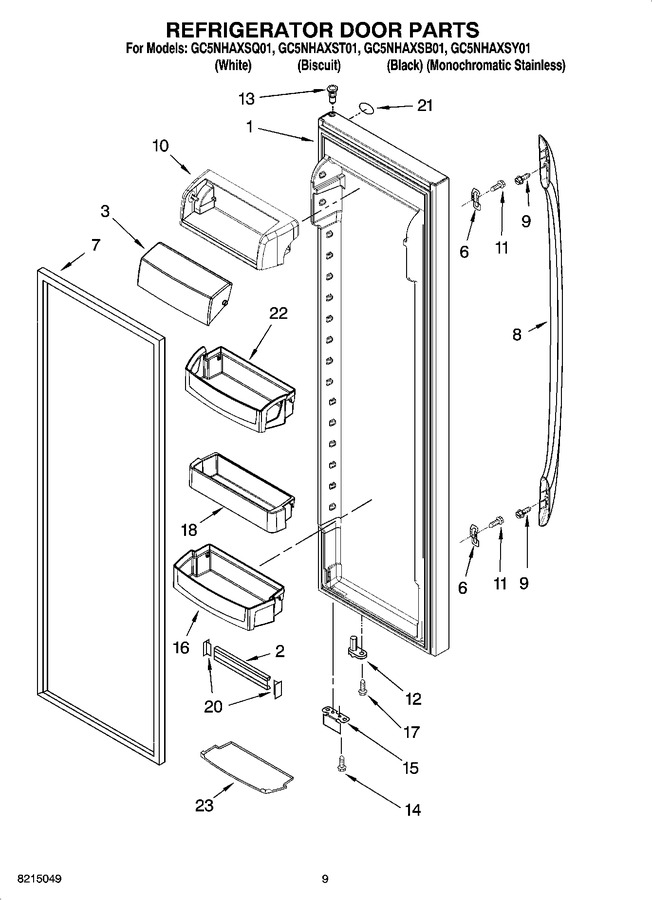

View Diagram in Separate Window
