Diagram # Part Number Description Series Find a Video
1 WP2182120 Fan Scroll Find a Video
2 8201663 Retainer, Fan Motor   (Replaces:2223733) Find a Video
3 2223298 Air Scoop Find a Video
4 2223303 Air Duct, Upper Find a Video
5 2223297 Air Duct Freezer Find a Video
6 WPW10225581 Bi-metal, Defrost   (Replaces:2319914) Find a Video
7 W10822580 Fan Motor   (Replaces:2259385) Find a Video
8 WP2169142 Fan Blade Find a Video
9 WP2304241 Gasket, Evaporator Cover (2) Find a Video
10 8201663 Fan Grommet (2)   (Replaces:2223986) Find a Video
12 W10297478 Harness, Fan Evaporator (includes 6)   (Replaces:2310236) Find a Video
13 WP2155789 Gasket, Fan Scroll Find a Video
16 4388500 Gasket   (Replaces:2203876) Find a Video
17 2223413 Cover, Evaporator (includes 9) Find a Video
18 4389654 Screw   (Replaces:8281159) Find a Video
21 WP489478 Screw Find a Video
22 2223395 Support, R.s Find a Video
23 4388358 Support, L.s   (Replaces:2203596) Find a Video

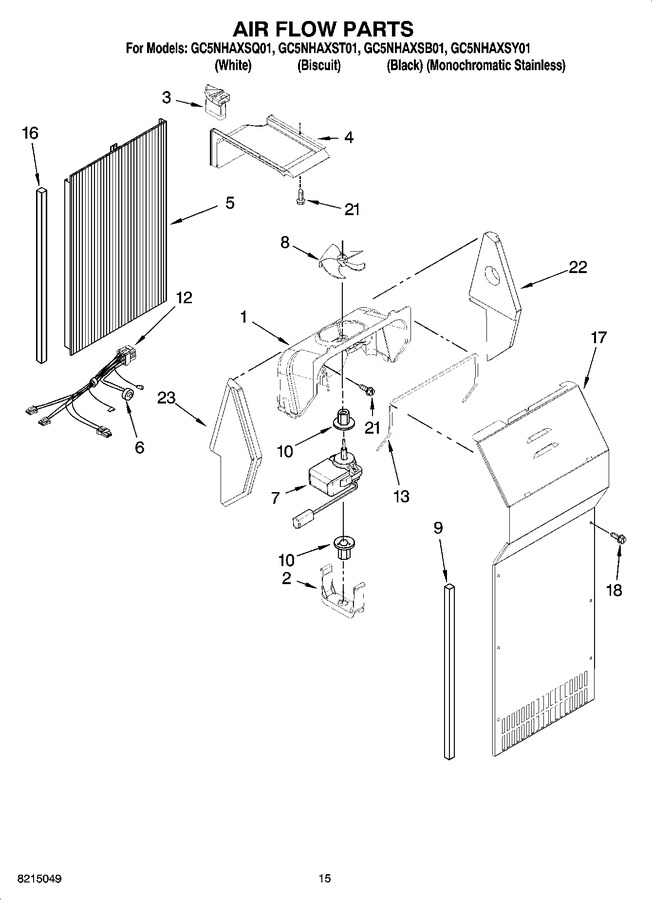

    View Diagram in Separate Window     Print Icon   Print Part List
