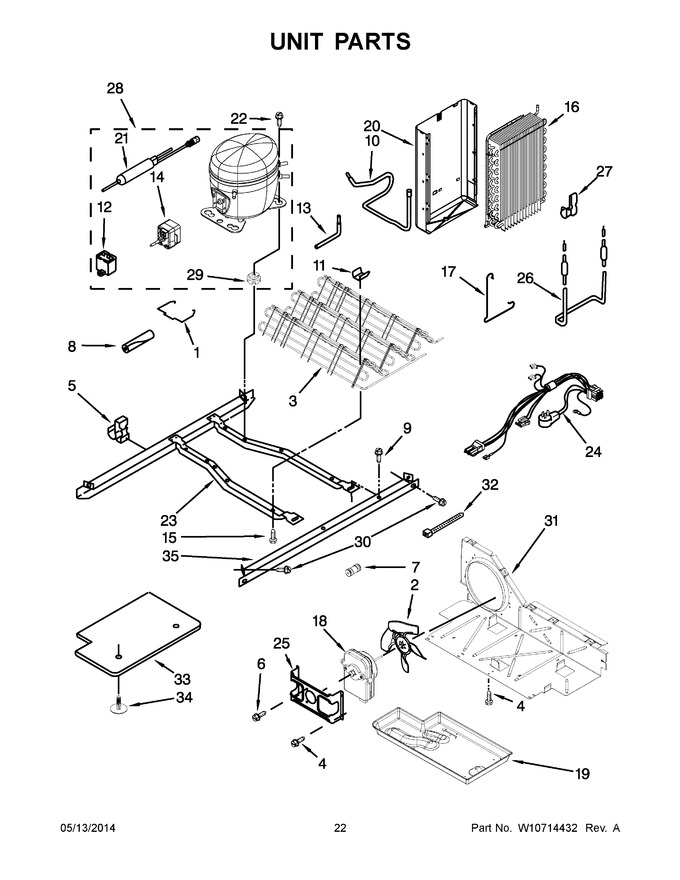

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | W10204187 | Strap, Bale |  |
|||
| 2 | W10156818 | Blade, Fan (Replaces:12825802) | |
|||
| 3 | 2324712 | Assembly, Condenser | |
|||
| 4 | WP489464 | Screw | |
|||
| 5 | W10812039 | Clip, Wire (Replaces:2326941) | |
|||
| 6 | WP8533993 | Screw | |
|||
| 7 | WP2300868 | Connector, Union (Replaces:W10271541) | |
|||
| 8 | 2162499 | Sleeve (Replaces:2161302) | |
|||
| 9 | WP489427 | Screw | |
|||
| 10 | 2205764 | Tube, Suction | |
|||
| 11 | W10683556 | Clip, Condenser (Replaces:2311725) | |
|||
| 12 | WPW10350564 | Capacitor | |
|||
| 13 | W10858105 | Tube, Process (Replaces:2325479) | |
|||
| 14 | WPW10197428 | Device, Combination Start (start Relay And Overload) | |
|||
| 15 | W11544659 | Screw (Replaces:8281232) | |
|||
| 16 | WP2188822 | Evaporator | |
|||
| 17 | WP2161324 | Clip, Defrost Heater | |
|||
| 18 | WP2188874 | Motor, Condenser (Replaces:W10508362) | |
|||
| 19 | WPW10614158 | Tray, Evaporator | |
|||
| 20 | WPW10194474 | Assembly, Heat Shield And Drain Pan | |
|||
| 21 | WPW10143759 | Drier (Replaces:W10177049) | |
|||
| 22 | W11417341 | Screw (Replaces:W10476309) | |
|||
| 23 | 2304903 | Frame, Unit Mounting | |
|||
| 24 | W11580023 | Unit, Harness (Replaces:W10417928) | |
|||
| 25 | WP2181929 | Bracket, Fan Motor | |
|||
| 26 | WPW10495967 | Heater, Defrost | |
|||
| 27 | WP2161324 | Clip, Defrost Heater | |
|||
| 28 | W10309988 | Compressor (also Order 876765 Tube Kit) (Replaces:W10253005) | |
|||
| 29 | WPW10169124 | Grommet (Replaces:10835903) | |
|||
| 30 | 489340 | Bolt | |
|||
| 31 | W10332806 | Baffle, Air | |
|||
| 32 | WPW10339879 | Tie, Wire (Replaces:2263990) | |
|||
| 33 | W10466699 | Cover, Unit | |
|||
| 34 | 489396 | Clip | |
|||
| 35 | W10207512 | Rail, Unit Mounting | |
|||
| NI | 978028 | Valve, Access | |
|||
| 978029 | Valve, Access | |
||||
| 978030 | Valve, Access | |
||||
| 876764 | Valve, Access | |
||||
| N/P | Refrigerant Charge 5.3 Oz (r-134a) | |
||||
| WP978025 | Valve, Access | |
||||
| 978026 | Valve, Access | |
||||
| 978027 | Valve, Access | |
