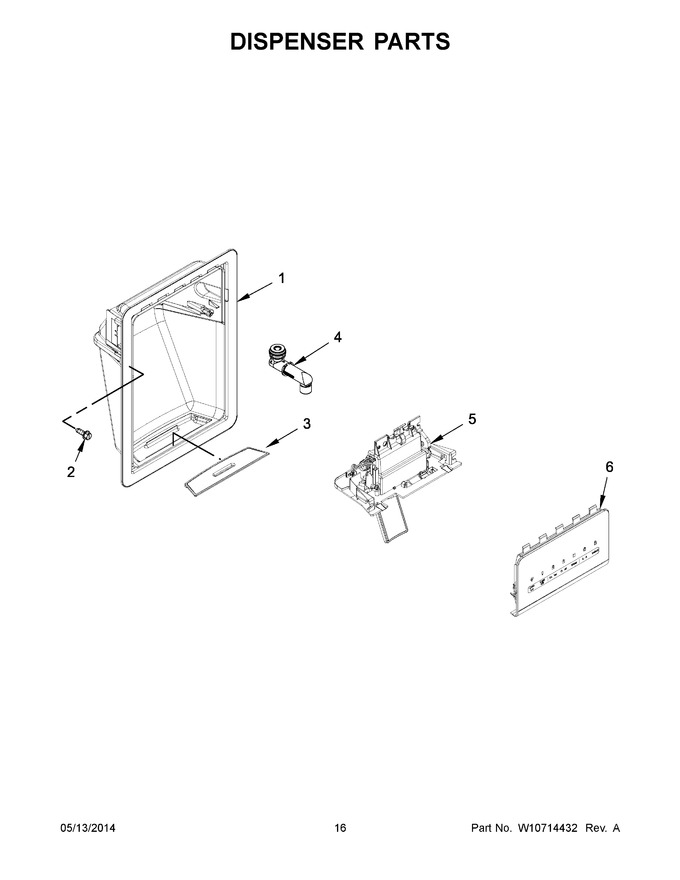

Diagram # Part Number Description Series Find a Video
1 N/P Housing, Dispenser (not Serviced) Find a Video
2 WP3196557 Screw   (Replaces:3196537) Find a Video
3 WPW10397392 Grille, Overflow (white) Find a Video
WPW10397394 Grille, Overflow (black) Find a Video
WPW10397992 Grille, Overflow (biscuit/bisque) Find a Video
WPW10397395 Grille, Overflow (grey) Find a Video
4 WPW10397435 Water Fitting Assembly Find a Video
5 W11195669 Separator Assembly (white)   (Replaces:W10616140) Find a Video
WPW10616142 Separator Assembly (grey) Find a Video
WPW10616141 Separator Assembly (black) Find a Video
W10616143 Separator Assembly (biscuit/bisque) Find a Video
6 WPW10397956 Ui Assembly Control (white) Find a Video
WPW10397957 Ui Assembly Control (black) Find a Video
WPW10397958 Ui Assembly Control (grey) Find a Video
WPW10397960 Ui Assembly Control (biscuit/bisque) Find a Video

    View Diagram in Separate Window     Print Icon   Print Part List
