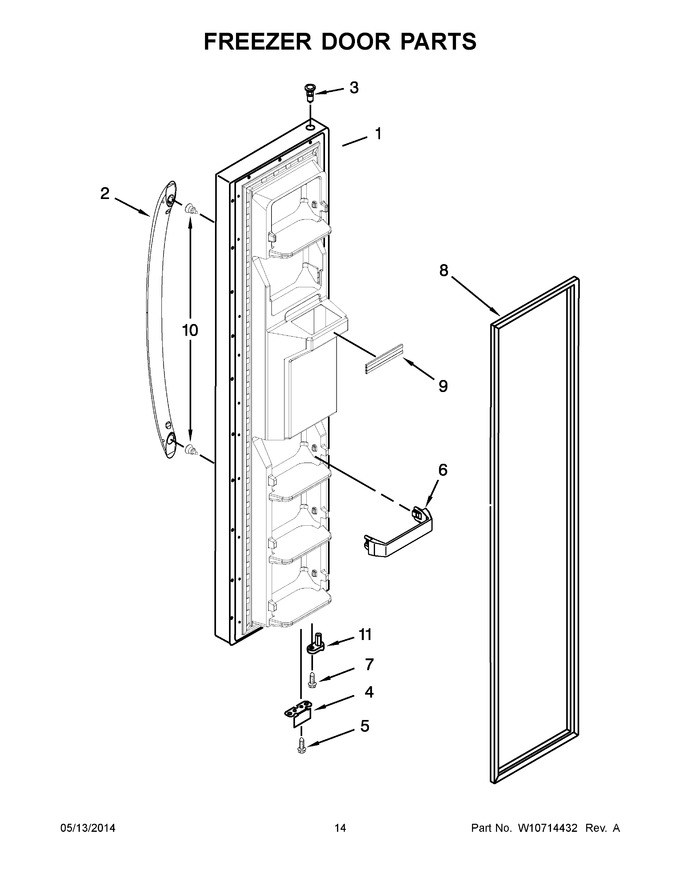

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | LW10637826 | Freezer Door (includes Item 8 And Dispenser Front Parts) (white) (Replaces:W10637826) |  |
|||
| LW10763103 | Freezer Door (includes Item 8 And Dispenser Front Parts) (black) (Replaces:W10651090) | |
||||
| LW10651093 | Freezer Door (includes Item 8 And Dispenser Front Parts) (biscuit/bisque) (Replaces:W10651093) | |
||||
| LW10651091 | Freezer Door (includes Item 8 And Dispenser Front Parts) (monochromatic Stainless) (Replaces:W10651091) | |
||||
| 2 | W10805245 | Handle (black) (Replaces:W10557412) | |
|||
| WPW10398789 | Handle (biscuit/bisque) | |
||||
| W10899551 | Handle (brushed Aluminum) (Replaces:W10407272) | |
||||
| W10848410 | Handle (white) (Replaces:W10357236) | |
||||
| 3 | WP2182181 | Thimble | |
|||
| 4 | 2306940 | Bracket, Door Stop (silver) | |
|||
| 5 | WP489483 | Screw (Replaces:489420) | |
|||
| 6 | WP2309717 | Trim, Door | |
|||
| 7 | WP3400012 | Screw | |
|||
| 8 | 2159080 | Door Gasket, Magnetic (black) (Replaces:2309654) | |
|||
| 2159072 | Door Gasket, Magnetic (beige) (Replaces:2309604) | |
||||
| W10136733 | Door Gasket, Magnetic (grey) (Replaces:2327162) | |
||||
| 9 | WPW10307490 | Trim, Door Shelf (Replaces:W10307492) | |
|||
| 10 | WPW10661886 | Screw (Replaces:W10460893) | |
|||
| 11 | WP2223752 | Thimble, Cam | |
