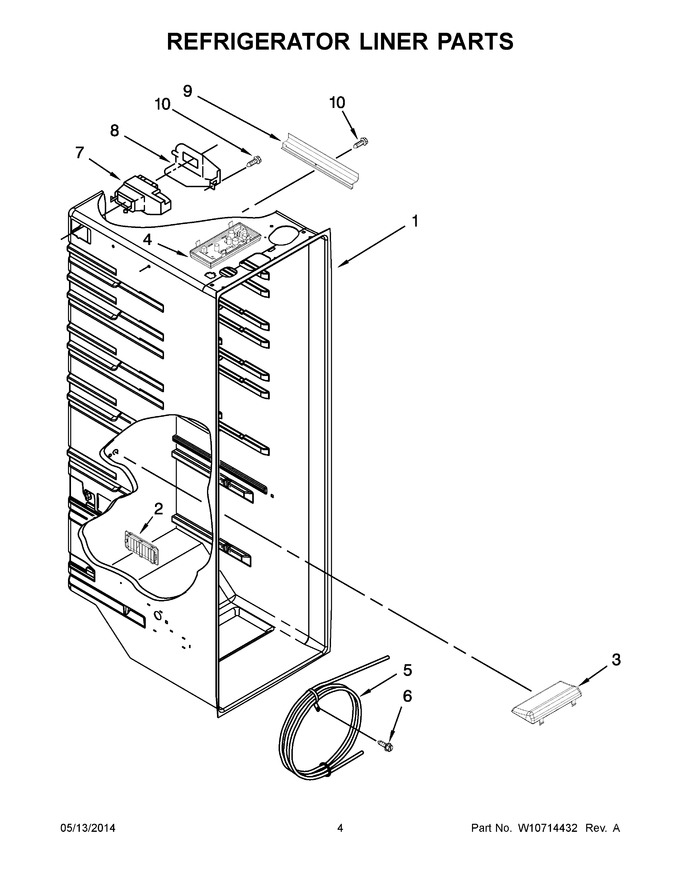

Diagram #	Part Number		Description	Series	Find a Video
1	N/P		Liner (not A Serviceable Part)
2	8201651		Louver   (Replaces:W10550195)
3	WPW10515057		Led Light Assembly, Tapered Lens
4	WPW10515058		Led Light Assembly, Flat Lens
5	WPW10276792		Reservoir   (Replaces:W10526445)
6	798639		Screw   (Replaces:488280)
7	WPW10151374		Air Diffuser Assembly
8	2152019		Cover, Air Diffuser
9	W10252495		Cover, Wiring
10	W10759522		Screw   (Replaces:486298)

    View Diagram in Separate Window       Print Part List
  Move Mouse over Availability column to View Location Quantities-on-Hand
