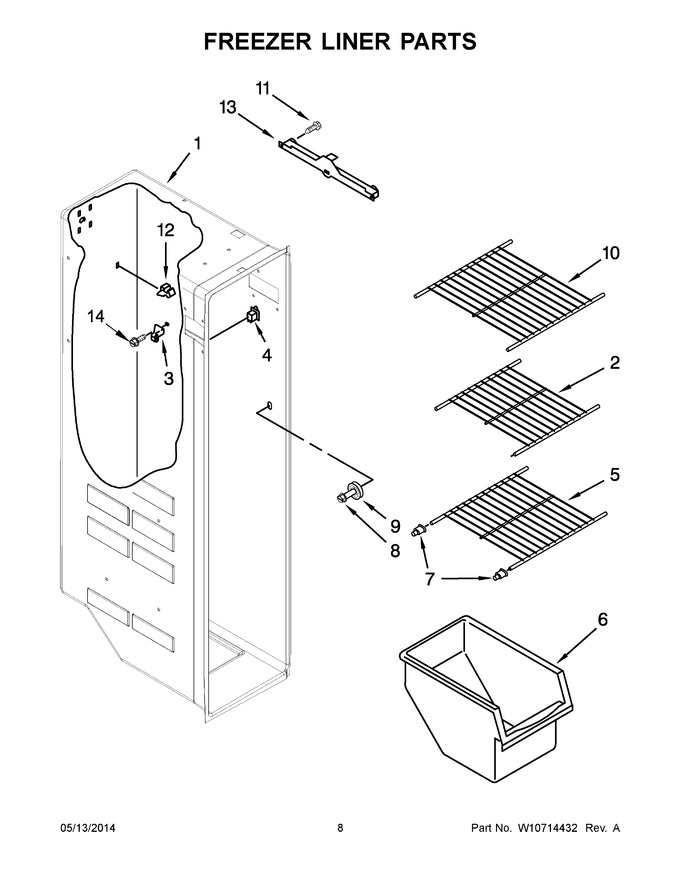

05 - Freezer Liner Parts


06 - Motor And Ice Container Parts


07 - Refrigerator Door Parts


08 - Freezer Door Parts


09 - Dispenser Parts


10 - Air Flow Parts


11 - Control Box Parts


12 - Unit Parts


13 - Ice Maker Parts


14 - Optional Parts


Diagram #	Part Number		Description	Series	Find a Video
1	N/P		Liner (not A Seviceable Part)
2	WPW10318953		Shelf, Wire
3	4388405		Support Stud   (Replaces:2196206)
4	W11457217		Switch, Rocker Arm Combination (freezer)   (Replaces:1115373)
5	WPW10318952		Shelf, Wire
6	WP2309758		Freezer Bin
7	WPW10130299		Cup, Shelf
8	WPW10191952		Screw
9	WP2196483		Assembly, Shelf Stud   (Replaces:W10173127)
10	WPW10318960		Shelf, Wire (short)
11	718257		Screw   (Replaces:489100)
12	2215823		Clip, Air Duct   (Replaces:2315163)
13	W10845585		Slide, Ice Container (left)   (Replaces:1119237)
	1119293		Slide, Ice Container (right)
14	W10142289		Screw   (Replaces:3400893)
