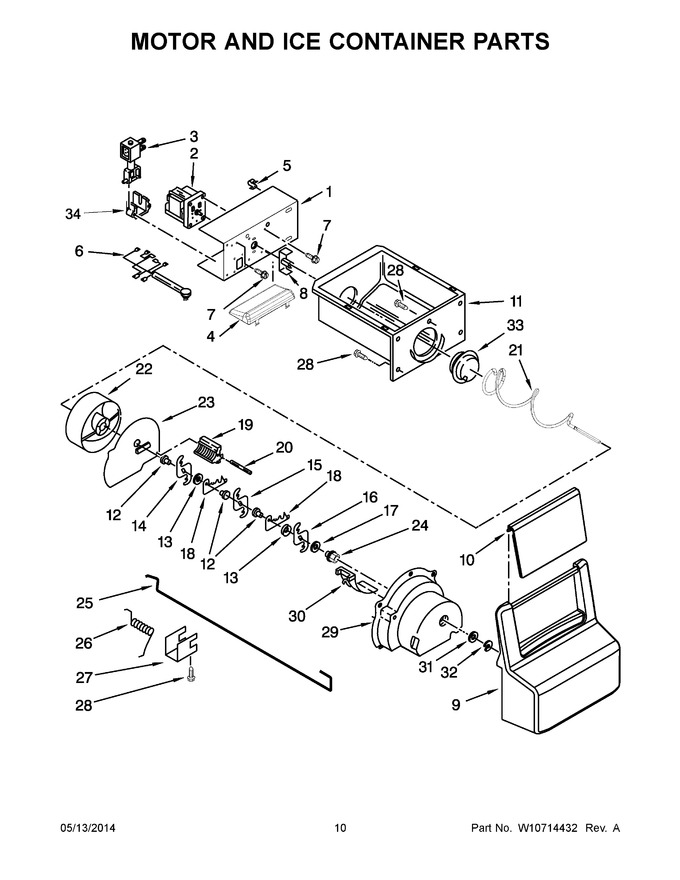

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | WPW10397979 | Bracket, Motor |  |
|||
| 2 | WPW10317991 | Motor, Dispenser | |
|||
| 3 | WP2152713 | Solenoid Assembly | |
|||
| 4 | WPW10515057 | Led Light Assembly, Tapered Lens | |
|||
| 5 | WP1115374 | Clip, Wire | |
|||
| 6 | W10417930 | Wiring Assembly, Ice Dispenser | |
|||
| 7 | WP489399 | Screw | |
|||
| 8 | WPW10169511 | Coupling, Motor | |
|||
| 9 | W10189274 | Front Cover, Ice Container | |
|||
| 10 | W10406979 | Ice Door | |
|||
| 11 | W10850492 | Ice Container (Replaces:W10670844) | |
|||
| 12 | W10189661 | Spacer, Step | |
|||
| 13 | WPW10189658 | Spacer, Flat | |
|||
| 14 | W10278731 | Blade, Rotary A | |
|||
| 15 | W10278732 | Blade, Rotary B | |
|||
| 16 | W10278733 | Blade, Rotary C | |
|||
| 17 | 489234 | Washer, Plain Upper Cam | |
|||
| 18 | W10181990 | Blade, Fixed | |
|||
| 19 | W10138203 | Block, Blade (Replaces:W10189708) | |
|||
| 20 | 489229 | Pin, Roll | |
|||
| 21 | WPW10295082 | Auger | |
|||
| 22 | 4388736 | Drum (Replaces:2305377) | |
|||
| 23 | W10852691 | Baffle, Floating (Replaces:W10403781) | |
|||
| 24 | WP1119018 | Nut, Bearing | |
|||
| 25 | W11596045 | Control Arm (Replaces:2155231) | |
|||
| 26 | 1119020 | Spring, Return | |
|||
| 27 | 1119021 | Retainer Clip, Rod Dispenser | |
|||
| 28 | WP488787 | Screw (Replaces:488886) | |
|||
| 29 | WPW10185018 | Housing, Crusher | |
|||
| 30 | WP1119017 | Deflecter, Ice | |
|||
| 31 | 489234 | Washer, Plain Upper Cam | |
|||
| 32 | WP489236 | Ring, Retainer | |
|||
| 33 | W10749708 | Coupling, Ice Conveyor (Replaces:983668) | |
|||
| 34 | W10850503 | Guide, Solenoid (Replaces:2149100) | |
|||
| 100 | WPW10558424 | Ice Container, Complete | |
