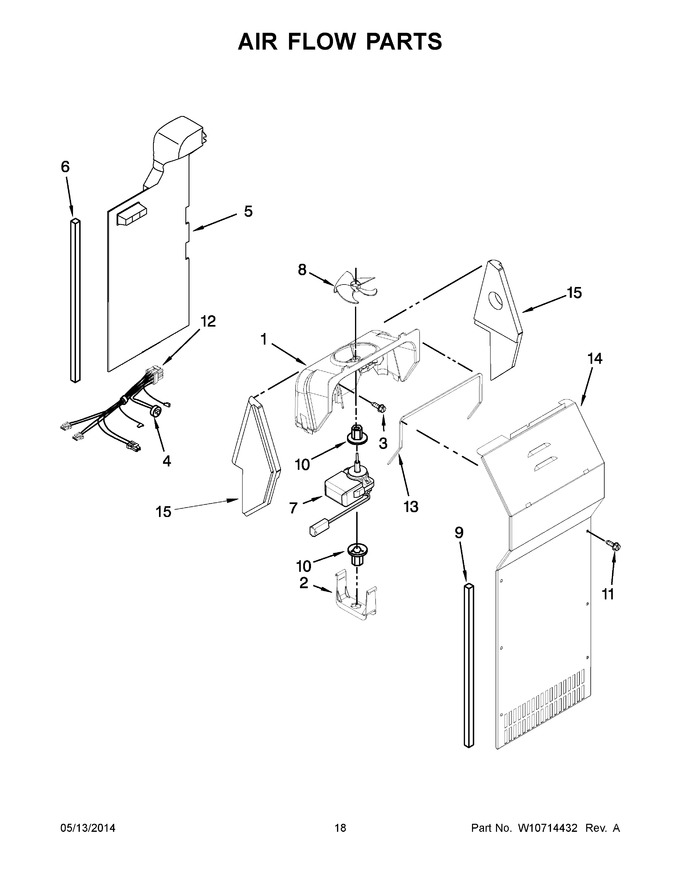

Diagram #	Part Number		Description	Series	Find a Video
1	W11254898		Scroll, Fan   (Replaces:2182119)
2	W11700295		Retainer, Fan Motor   (Replaces:W10188846)
3	WP489478		Screw
4	WPW10225581		Bi-metal, Defrost
5	W10166220		Air Duct Freezer
6	4388500		Gasket   (Replaces:W10252476)
7	WPW10236142		Motor, Fan
8	WP2169142		Blade, Fan
9	WP2304241		Gasket
10	WP2176759		Grommet, Motor
11	WP693995		Screw   (Replaces:W10142292)
12	W11225843		Harness, Fan Tube Evaporator   (Replaces:W10297480)
13	WP2304241		Gasket
14	WPW10463012		Cover, Evaporator
15	4388358		Support, Fan Scroll (right Hand)   (Replaces:2203595)
