Diagram for 01 - Cover  Sheet
01 - Cover Sheet

Diagram for 02 - Cabinet Parts

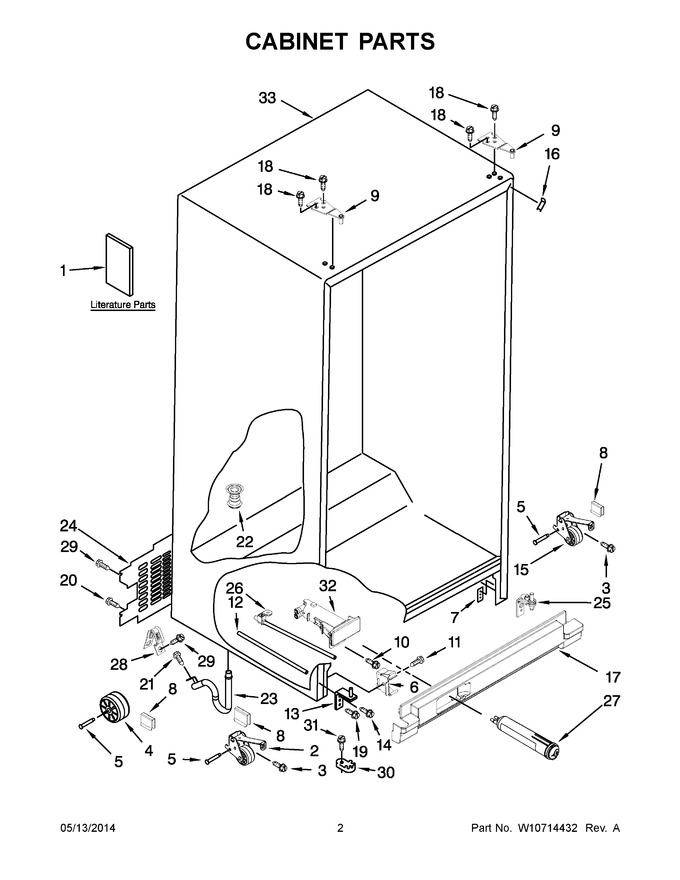

02 - Cabinet Parts

Diagram for 03 - Refrigerator Liner Parts
03 - Refrigerator Liner Parts

Diagram for 04 - Refrigerator Shelf Parts
04 - Refrigerator Shelf Parts

Diagram for 05 - Freezer Liner Parts
05 - Freezer Liner Parts

Diagram for 06 - Motor And Ice Container Parts
06 - Motor And Ice Container Parts

Diagram for 07 - Refrigerator Door Parts
07 - Refrigerator Door Parts

Diagram for 08 - Freezer Door Parts
08 - Freezer Door Parts

Diagram for 09 - Dispenser Parts
09 - Dispenser Parts

Diagram for 10 - Air Flow Parts
10 - Air Flow Parts

Diagram for 11 - Control Box Parts
11 - Control Box Parts

Diagram for 12 - Unit Parts
12 - Unit Parts

Diagram for 13 - Ice Maker Parts
13 - Ice Maker Parts

Diagram for 14 - Optional Parts
14 - Optional Parts


New Model Search:



Manufacturer: Whirlpool

Keyword Search:


< Back to Home

Diagram # Part Number Description Series Find a Video
1 W10624262 Energy Guide Find a Video
W10407342 Use & Care Guide Find a Video
W10620750 Service & Wiring Sheet Find a Video
2 WPW10304660 Roller, Front (left) Find a Video
3 W10803534 Screw   (Replaces:2152958) Find a Video
4 WPW10475495 Roller Find a Video
5 WP2179826 Axle, Roller   (Replaces:2262072) Find a Video
6 WP2155013 Clip, Grille Find a Video
7 WP2304249 Plate, Screw Find a Video
8 WP2174706 Clip, Roller Find a Video
9 W10704883 Top Hinge (biscuit/bisque)   (Replaces:W10400478) Find a Video
W11175565 Top Hinge (white)   (Replaces:W10402730) Find a Video
W11505114 Top Hinge (black)   (Replaces:W10398820) Find a Video
W11164088 Top Hinge (grey)   (Replaces:W10400479) Find a Video
10 WP489500 Screw Find a Video
11 WP489128 Screw   (Replaces:488500) Find a Video
12 WPW10350006 Tube, Filter Outlet Find a Video
13 W10646418 Hinge Bottom Fc   (Replaces:W10414753) Find a Video
14 WP489497 Screw   (Replaces:3400113) Find a Video
15 WPW10304659 Roller, Front (right) Find a Video
16 W10283958 Filler, Wrapper (biscuit/bisque) Find a Video
W11252732 Filler, Wrapper (black)   (Replaces:W10283960) Find a Video
WPW10283959 Filler, Wrapper (white) Find a Video
W10851579 Filler, Wrapper (grey)   (Replaces:W10283961) Find a Video
17 WPW10393046 Grille (grey) Find a Video
WPW10393045 Grille (black) Find a Video
WPW10393044 Grille (white) Find a Video
W10393047 Grille (biscuit/bisque) Find a Video
18 WPW10308751 Screw (black) Find a Video
WPW10308750 Screw (white) Find a Video
19 W10856122 Screw   (Replaces:3400103) Find a Video
20 WP488488 Screw   (Replaces:489290) Find a Video
21 WP489464 Screw Find a Video
22 WP2304888 Fitting, Drain Find a Video
23 W11512417 Extension, Drain Fitting   (Replaces:W10153550) Find a Video
24 WP2188756 Cover, Unit   (Replaces:2188734) Find a Video
25 W11049959 Hinge Bottom Rc   (Replaces:W10409481) Find a Video
26 WPW10350007 Tube, Filter Inlet Find a Video
27 EDR1RXD1 Water Filter   (Replaces:W10569758) Find a Video
28 WP3196256 Clamp, Power Cord   (Replaces:549193) Find a Video
29 489084 Screw Find a Video
30 WP2223751 Closer, Freezer Door Find a Video
31 WP489483 Screw   (Replaces:W10142234) Find a Video
32 W10862460 Housing, Water Filter (black)   (Replaces:W10350063) Find a Video
W10862456 Housing, Water Filter (white)   (Replaces:W10350062) Find a Video
W10861696 Housing, Water Filter (biscuit/bisque)   (Replaces:W10350064) Find a Video
W10862461 Housing, Water Filter (grey)   (Replaces:W10350065) Find a Video
33 N/P Cabinet (not A Servicable Part) Find a Video
