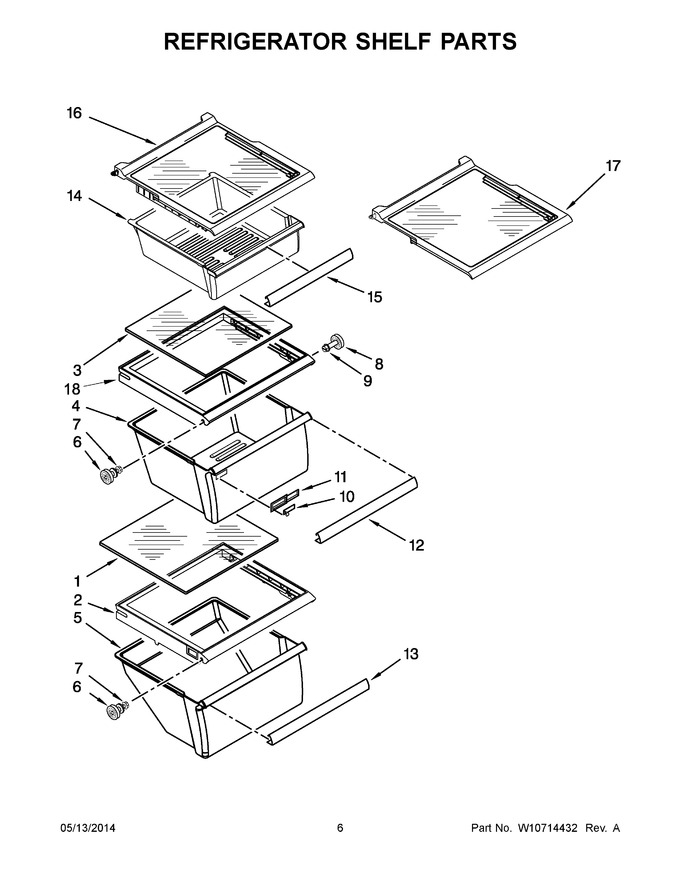

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | W10864399 | Glass, Cover (Replaces:2179259) |  |
|||
| 2 | W10508993 | Cover, Crisper (Replaces:2209698) | |
|||
| 3 | W10864399 | Glass, Cover (Replaces:2179259) | |
|||
| 4 | WP2188656 | Pan, Crisper (Replaces:2188652) | |
|||
| 5 | WP2188664 | Pan, Meat (Replaces:2188654) | |
|||
| 6 | W11223328 | Assembly, Shelf Stud (Replaces:W10173126) | |
|||
| 7 | WP3-24004-109 | Screw (Replaces:W10191954) | |
|||
| 8 | WP2196483 | Assembly, Shelf Stud (Replaces:W10173127) | |
|||
| 9 | WPW10191952 | Screw | |
|||
| 10 | WP2179342 | Slide, Humidity Control | |
|||
| 11 | WP2179343 | Body, Humidity Control | |
|||
| 12 | WPW10393041 | Trim, Crisper Pan | |
|||
| 13 | WP2179234 | Trim, Pan | |
|||
| 14 | WP2309517 | Pan, Snack | |
|||
| 15 | WP2179243 | Trim, Snack Pan (Replaces:2309519) | |
|||
| 16 | WPW10276341 | Shelf, Snack Pan | |
|||
| 17 | WPW10276348 | Assembly, Spillguard Shelf | |
|||
| 18 | W10914556 | Cover, Pan (Replaces:W10485332) | |
