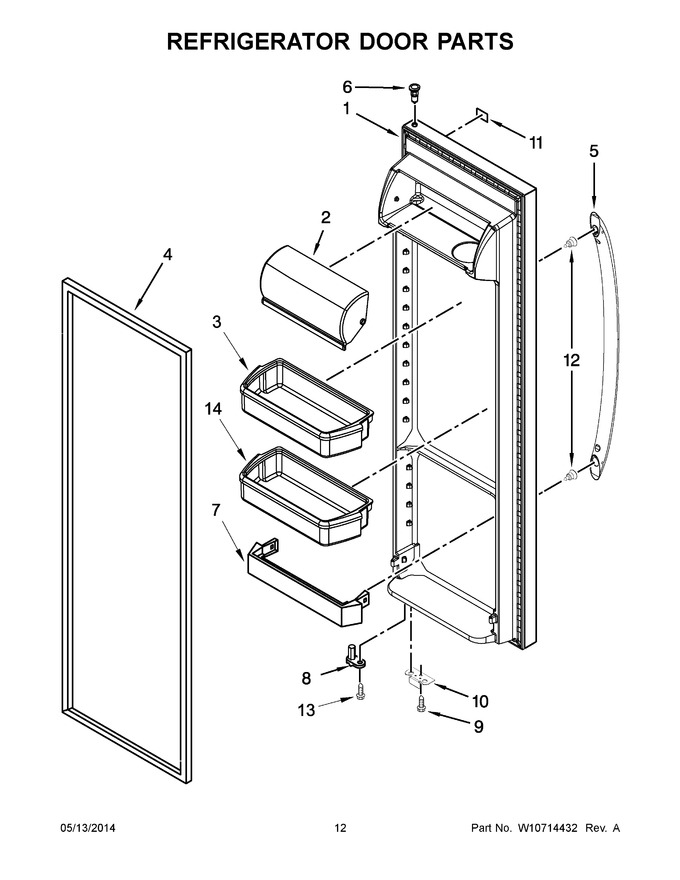

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | LW10424384 | Refrigerator Door (includes Item 4) (monochromatic Stainless) (Replaces:W10424384) |  |
|||
| LW10428790 | Refrigerator Door (includes Item 4) (white) (Replaces:W10428790) | |
||||
| LW10407738 | Refrigerator Door (includes Item 4) (black) (Replaces:W10407738) | |
||||
| LW10407707 | Refrigerator Door (includes Item 4) (biscuit/bisque) (Replaces:W10407707) | |
||||
| 2 | WP2256101 | Door, Compartment | |
|||
| 3 | WPW10321304 | Bin, Door (Replaces:W10549739) | |
|||
| 4 | 2159073 | Door Gasket, Magnetic (beige) (Replaces:2309600) | |
|||
| 2159081 | Door Gasket, Magnetic (black) (Replaces:2309653) | |
||||
| W10136732 | Door Gasket, Magnetic (grey) (Replaces:2327161) | |
||||
| 5 | W10848410 | Handle (white) (Replaces:W10357236) | |
|||
| W10805245 | Handle (black) (Replaces:W10557412) | |
||||
| WPW10398789 | Handle (biscuit/bisque) | |
||||
| W10899551 | Handle (brushed Aluminum) (Replaces:W10407272) | |
||||
| 6 | WP2182181 | Thimble | |
|||
| 7 | WP2309941 | Trivet | |
|||
| 8 | WP2182179 | Thimble, Cam (Replaces:2182178) | |
|||
| 9 | WP489483 | Screw (Replaces:489420) | |
|||
| 10 | WPW10219801 | Bracket, Door Stop (silver) | |
|||
| 11 | WPW10511972 | Nameplate (grey) | |
|||
| WPW10511975 | Nameplate (white) | |
||||
| 12 | WPW10661886 | Screw (Replaces:W10460893) | |
|||
| 13 | WP3400012 | Screw | |
|||
| 14 | WPW10321304 | Bin, Door | |
